Wright-Martin Aircraft Corporation, New Brunswick, N.J · New Brunswick, N.J., Wright-Martin Aircraft Corporation · leaf 41

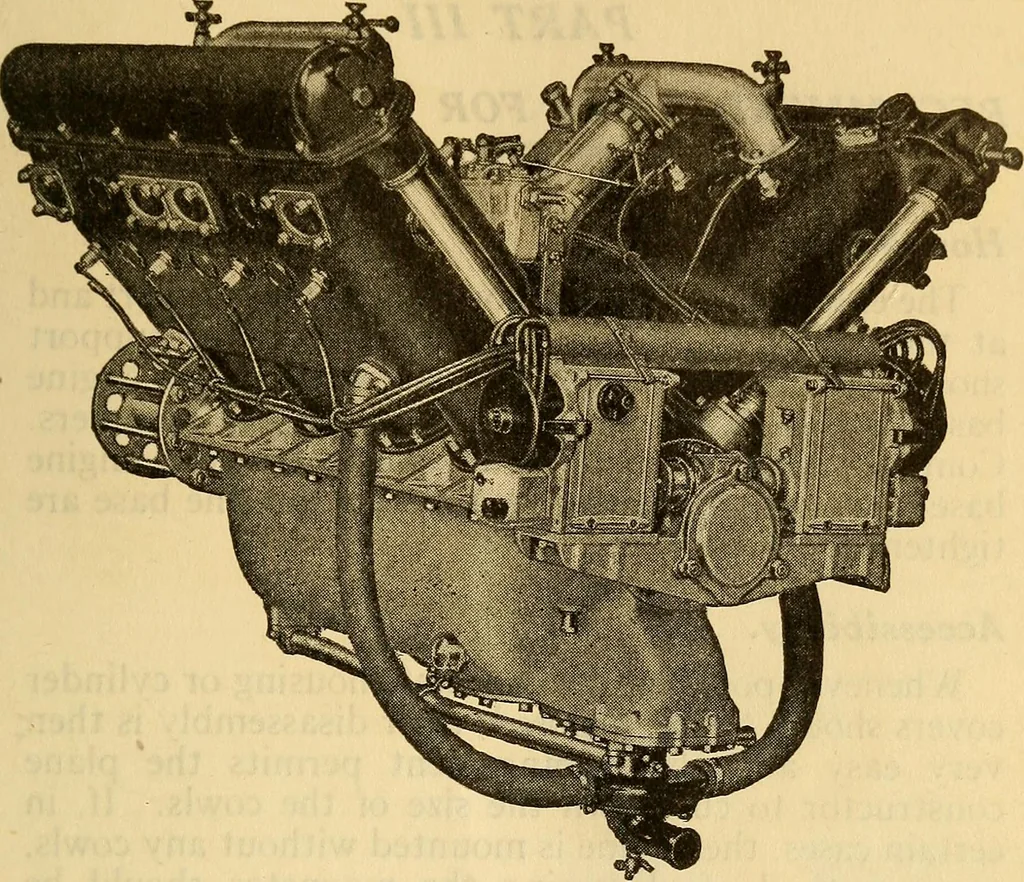

y steel running in plainbronze bearings. These shafts are protected by a hous-ing of light steel tubing and each one is provided with ascrew-driver type of joint near the middle, allowingready removal of the cylinder blocks without dismount-ing other parts. The camshafts, cams and heads of thevalve… … Plate 9Left side of engine. Propeller Hub. The propeller hub is fastened directly on the taperedcrankshaft end by means of a key, being drawn on by anut having a coarse pitch thread on the inside and itbeing locked by a second nut having a fine pitchthread on the outside which screws directly into…
Airplanes
