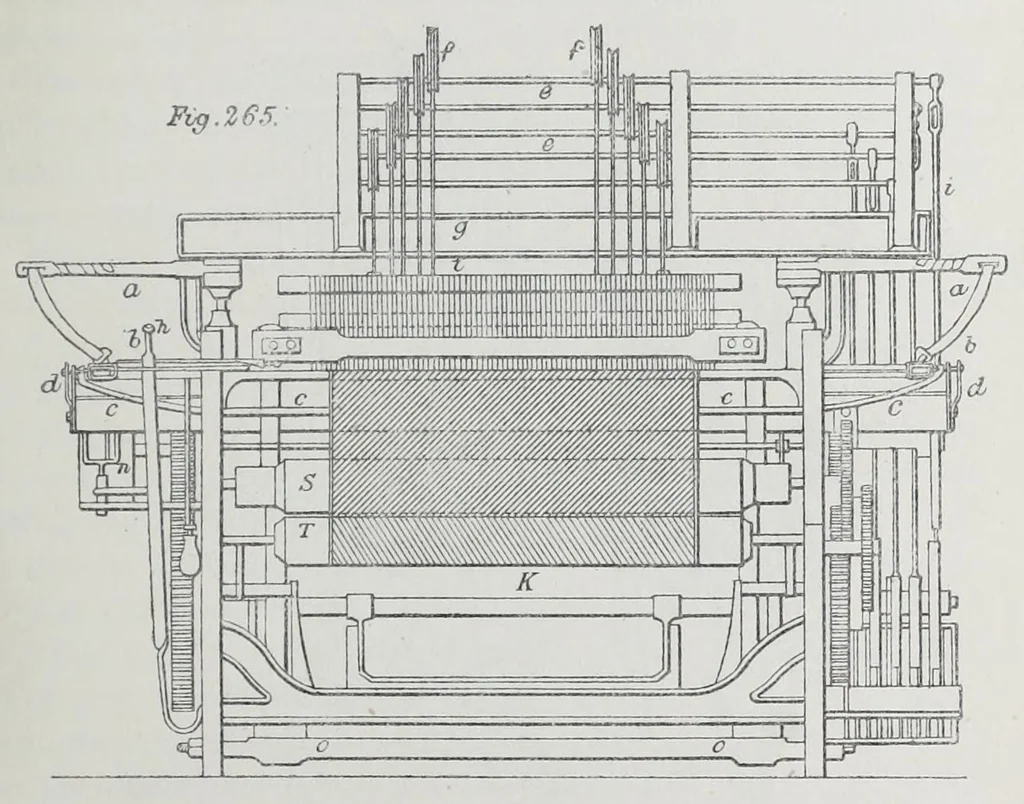

used, then a separate tappet shaft is required, and it is usually placed at the end of the loom, and is driven by a separate intermediate pinion as at Iv, Fig. 266. Motion is given to the loom Fig. 265 by a strap working on the pulley n, fixed at the end of the crank shaft, from which shaft all the… … fly-shuttle. A strap c c extends across the shuttle race, as shown, and is kept in position by means of staples. The ends of the strap are looped on the picker spindles at the back of each picker, so that when the shuttle is driven to the opposite box, it forces back the picker and the strap also,…
