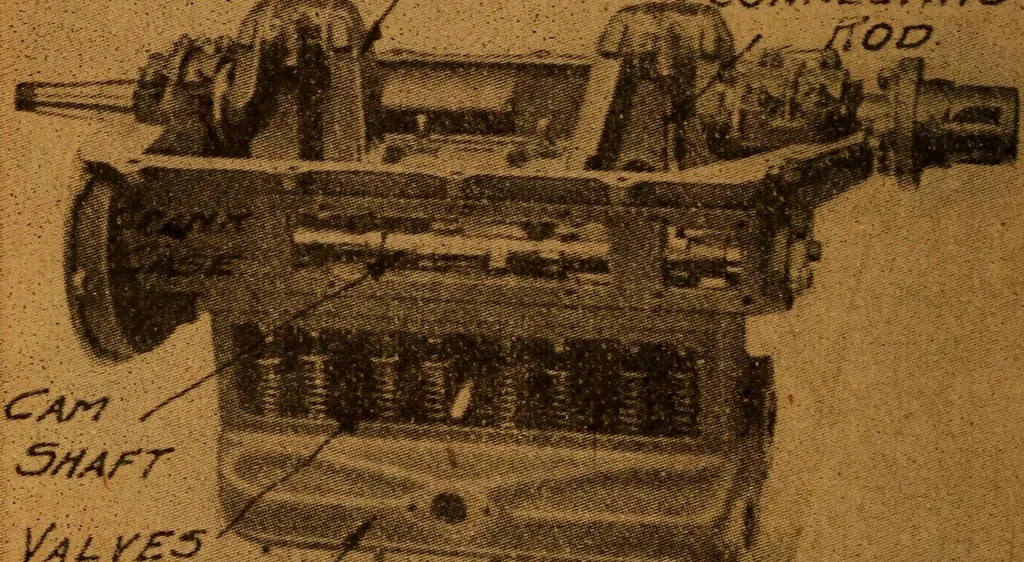

-cylinder 18 Home-I[arm Power and Lighting. and is held to its seat by a spring which has justenough tension to hold the valve to its seat. Inoperation the vacuum created in the cylinder over-comes this tension and permits the valve to open.The mechanical operation of the valve is accom-plished by… … 3/fAfr Fig. 12. Camshaft, crankshaft, crankcase and cylinder assemblyof a four-cylinder engine. In this case it is also necessary to convert arotary motion in a reciprocating motion, as thecamshaft revolves, while the valves have a recip-rocating motion. However, as no permanentconnection is…
