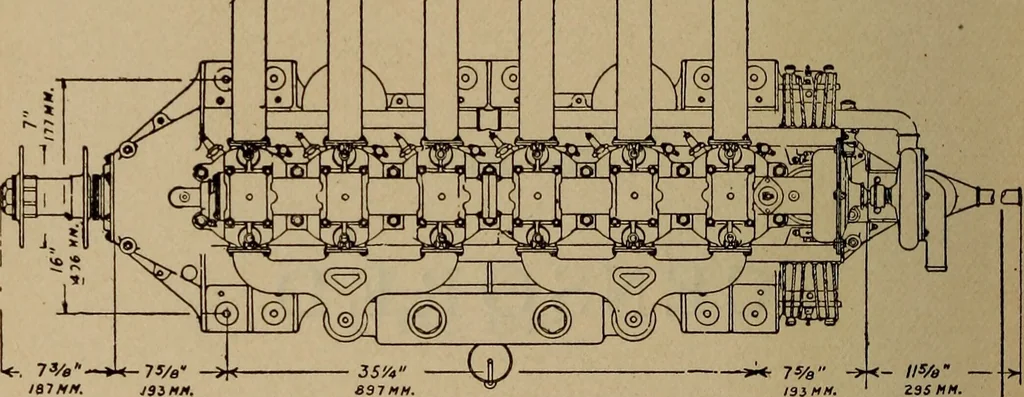

51. CENSORED Engine Installation 335 Fig. 152. CENSORED 336 Aviation Engines reproduced from the instruction book issued by the maker.Operating instructions which are given should enable any-good mechanic to make a proper installation and to keepthe engine in good running condition. FUEL SYSTEM… … 7%* i ei mm. Fig. 153.—Plan View of Hall-Scott Type A-5 125 Horse-Power AirplaneEngine, Showing Installation Dimensions. Calorimetric bomb test 20610 B. T. U. per pound. If thegasoline tank is placed in the fuselage below the level ofthe carburetor, a hand pump must be used to maintainair pressure…
