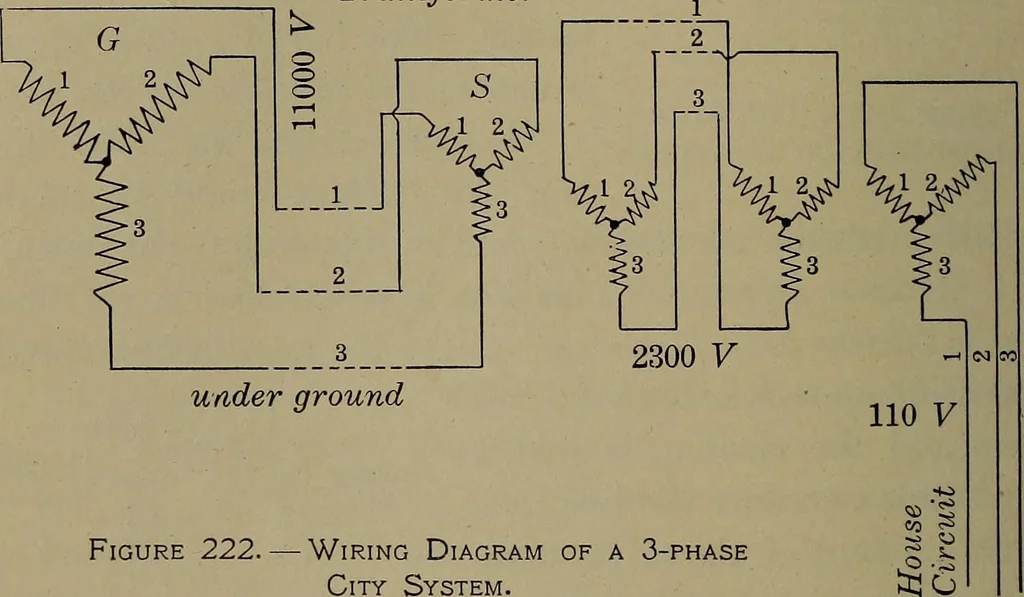

e-phasesystem. It consists of three wires in-stead of two, and carries three times asmuch power as a two-line system. The generator for three-phase currentis so arranged that the current goes outon one of the wires and comes back onthe other two, or goes out on two and comes back on one. For… … Figure 222 Wiring Diagram of a 3-phaseCity System. on No. 2 and No. 3 ; an instant later it will go out on No. 2,and come back on No. 1 and No. 3, etc. This is the system used in Cleveland, Ohio, by the Illu-minating Company. WIRIXG DIAGRAM OF HOUSE CIRCUIT 209 242. The Wiring Diagram of a City…
