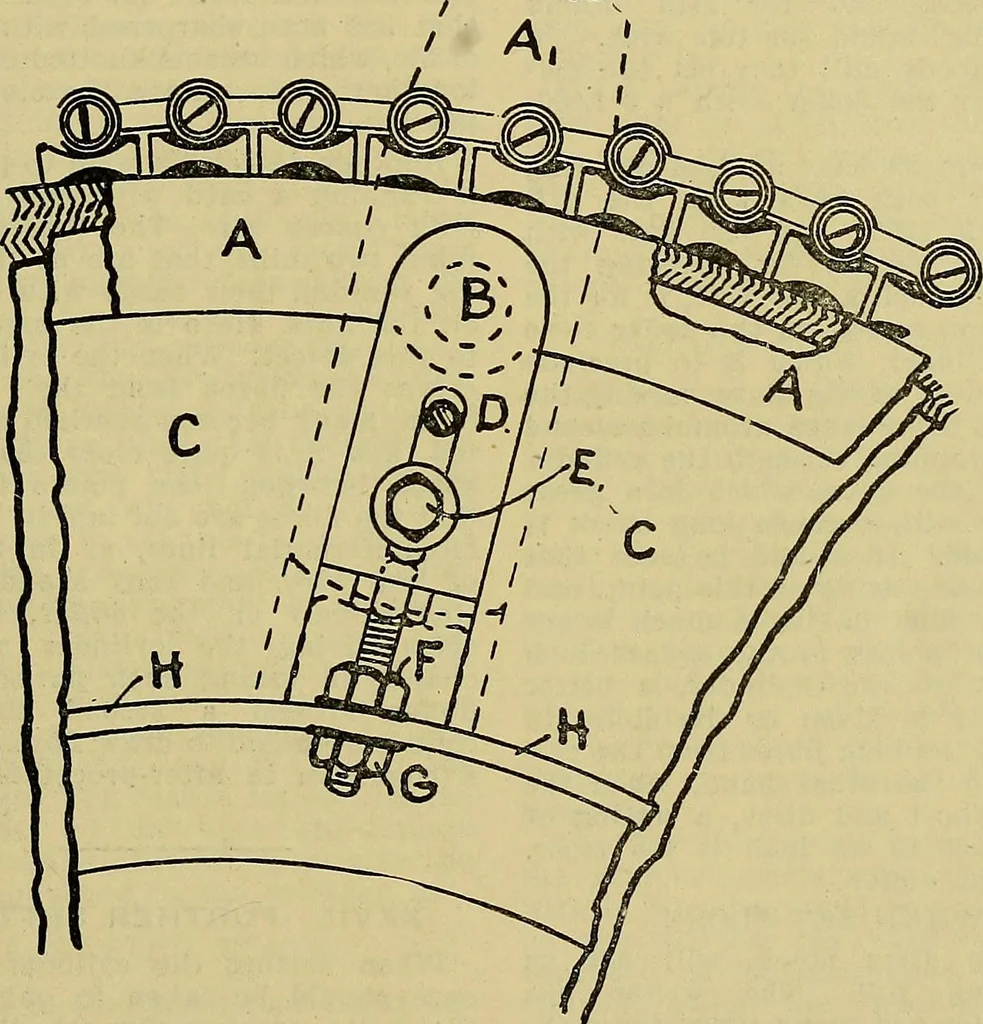

e other,they move the rigid bend D in or out. 3. The bend A is supported by brack-ets, which in most cases are composedof two parts, Al and D. In Figure 3the outer portion, Al, is shown in dottedlines. The inner portion, D, is so madethat a projecting lug, B, flts into a holein the bend and holds… … Figure 3. Arrangement for Setting th e Flats. and thus raise or lower the flexiblebend as explained. Each division on the index nuts Arepresent 1-1,000 part of an inch, andby turning these nuts one division,the flats are raised or lowered to thisextent. Another arrangement for setting oradjusting…
