The textile industries : a practical guide to fibres, yarns & fabrics in every branch of textile manufacture, including preparation of fibres, spinning, doubling, designing, weaving, bleaching, printing, dyeing and finishing (1910)
Murphy, William S · London : The Gresham Publishing Company · leaf 45

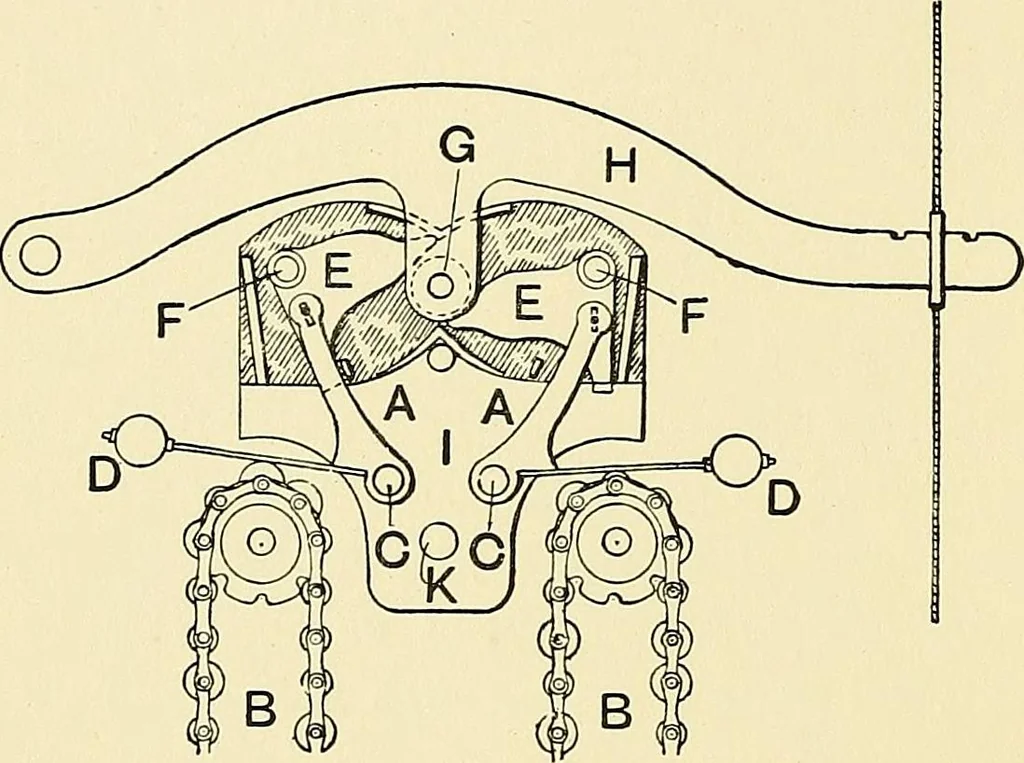

the mechanism, the Nuttalls devisedwhat is called Nuttalls Chain, largely employed in carpet manu-facture and heavy woollens (fig. 273). Composed of chains similarto those on the oscillating tappet, this contrivance acts directly on theheald-shaft treadles. The chain barrels, mounted in suitable… … i-ig. 272.—Oscillating Tappet In this tappet the levers a a are actuated by the rollers and collarsof the chains B B. The levers are pivoted at c c and weighted at D D.By means of pins working in slots they move the tappet plates E E,which are centred at F F. When one of these is depressed the bowl…
Textile industry · Textile fabrics
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
