Labor-saving looms : a brief treatise on plain weaving and the recent improvements in that line, with special reference to the Northrop looms manufactured by Draper Company, Hopedale, Mass., U.S.A (1905)
Draper, George Otis, 1867-1923, Draper Company · [Hopedale, Mass. : Draper Company] · leaf 105

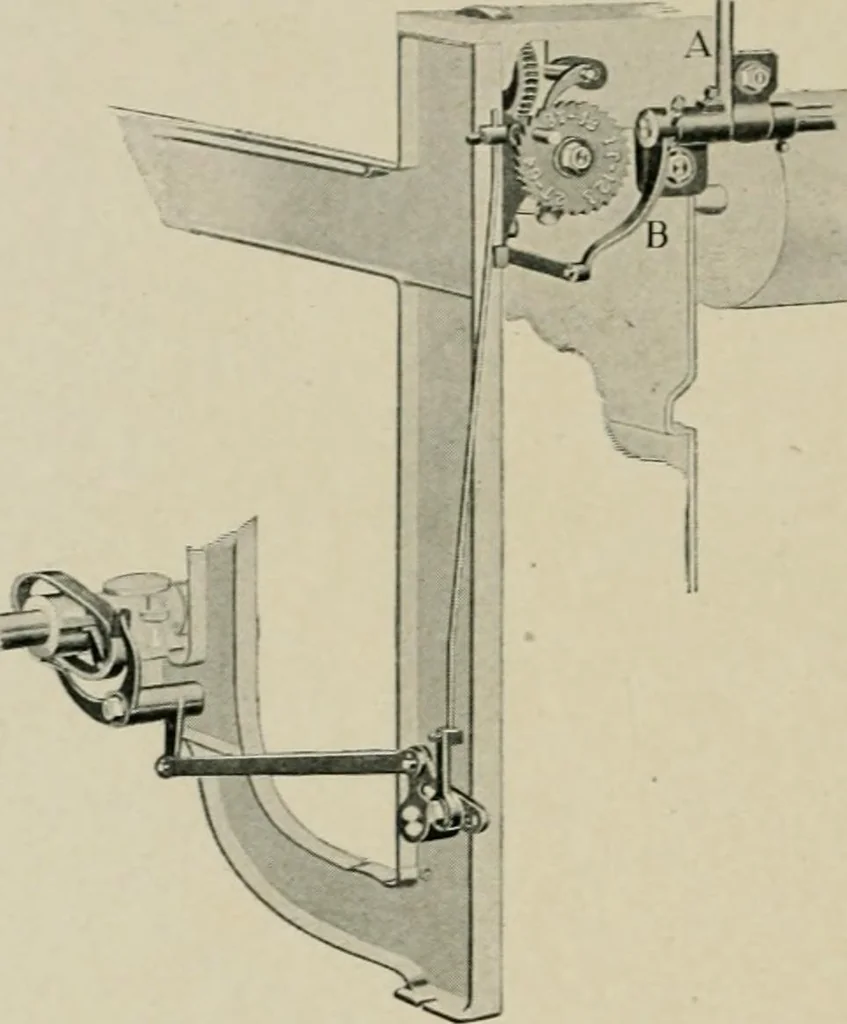

B MODEL LOOM TAKE-UP. This take-up derives its motion from the rocking of thelay-sword. It has a let-hack governed from the fork-slide. Cut also illustrates the weft-hammer and shipper knock-off. … T MODEL TAKE-UP. Tim take-up is extremely simple, as will be seen by thecut. It is operated by a cam on the lower loom -halt and sotimed that it will not take up unles- the shuttle is picked. Thisprevents the thin places which arc sometimes formed on commonand old Northrop looms if the weaver turns…
Looms · Weaving
