How to build, equip and operate a cotton mill in the United States (1913)
Frank P. Bennett & Co · Boston, New York [etc.] F. P. Bennett & company, inc · leaf 79

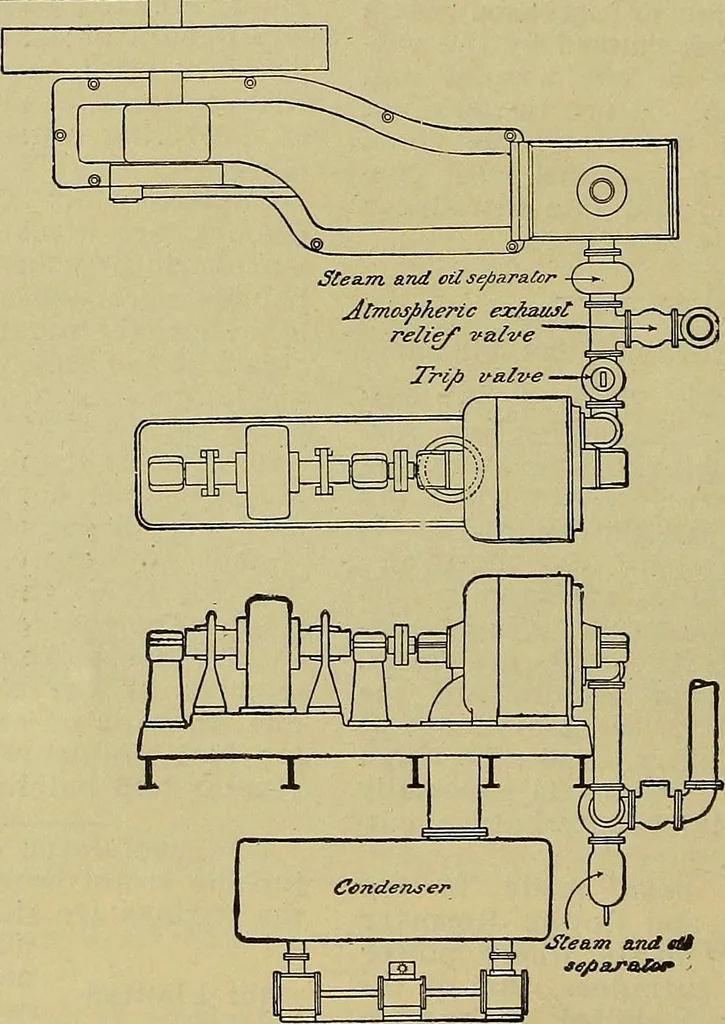

thelow-pressure cylinder, an exhaust 66 MILL CONSTRUCTION AND POWER steam turbine can b© arranged to re-ceive the steam from the high-pres-sure cylinder and utilize its expansionpowers by discharging into a vacuumof 24 to 29 inches. This plan maynot always be advisable, but it shouldbe given… … Fig. 44. Plan and Elevation of Low-Pressure Turbine Installation. Figure 44 is a plan, an elevation ofan exhaust turbine generator installa-tion showing the connectioms and therelative proportions of the parts. Aload of 300-horse power is carried byth© engine, and the turbine supplies200 additional…Cotton manufacture · Textile factories
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
