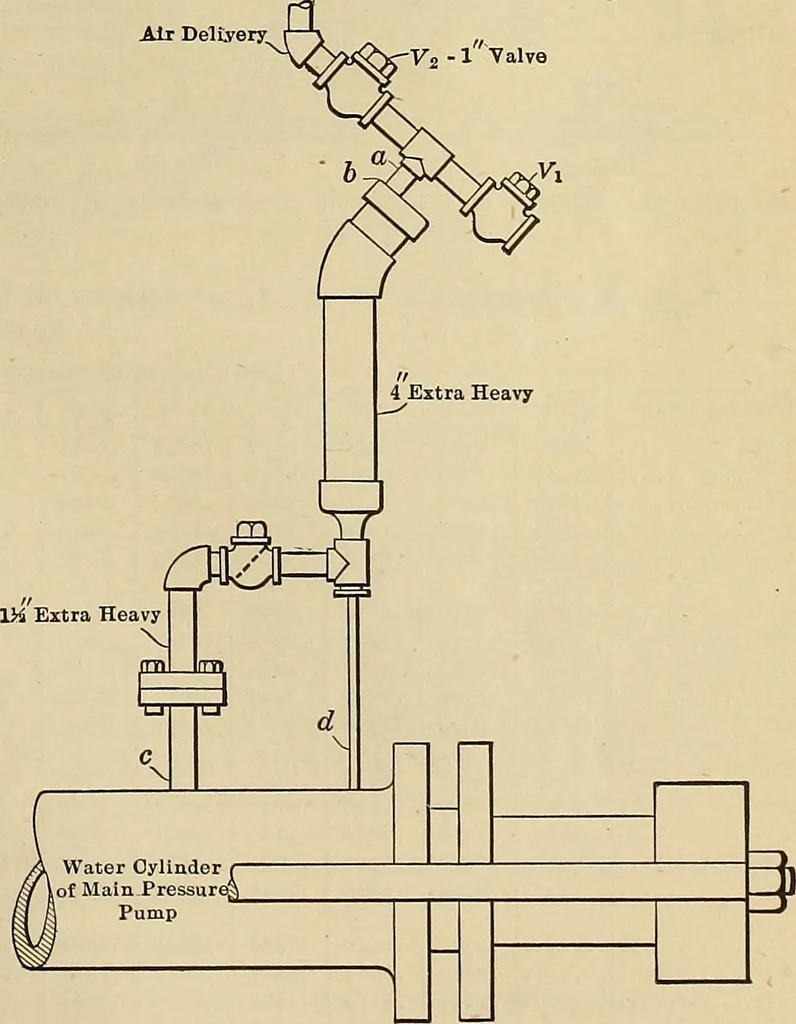

Fig. 34.—Air chamber charging device. resulting reduced velocity of the water, air chambers are about asnecessary on suction as on pressure lines. F. M. Wheeler has pointedout {Trans. A.S.M. E., Vol. 14) that suction chambers are frequentlywrongly connected. The air chamber should be so placed that… … Fig. 35.—Air chamber charging device for high pressures. pump it can flow on past the pump suction chamber or valves to theair chamber, so that its energy can be expended directly on the con-fined air. The chamber should not be so placed that the water 248 HANDBOOK FOR MACHINE DESIGNERS AND…
