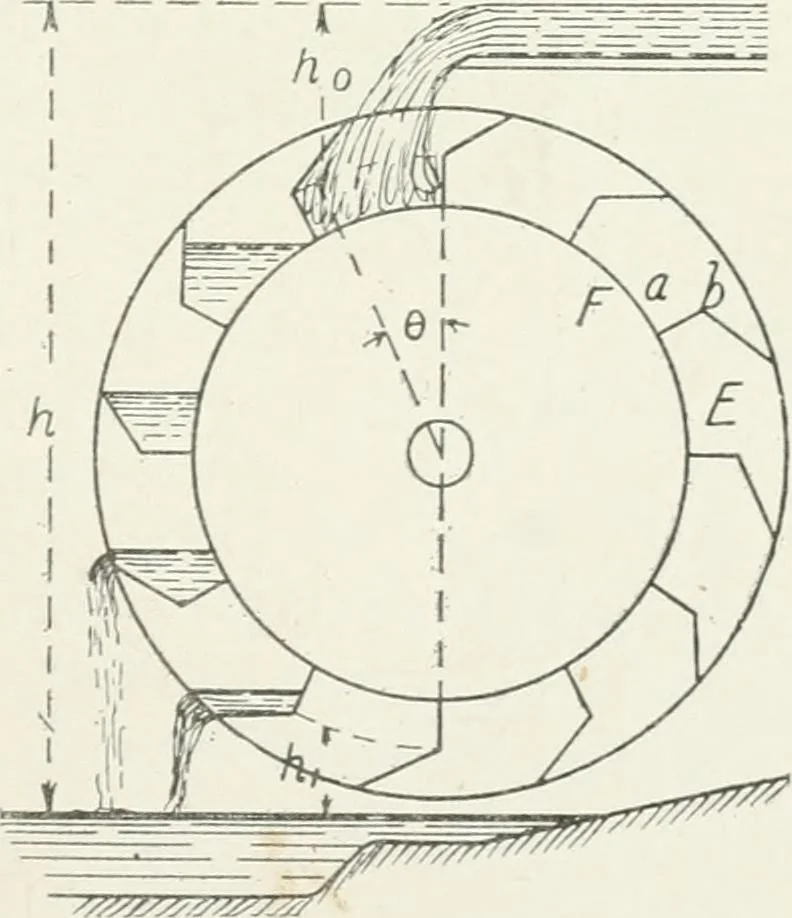

bucket is formedby the rim or sole-plate F; theside pieces are made by two cheeksor shrouds E. The whole isbolted to arms assembled on thehub, and supported by the axle. Let h be the total fall fromthe surface of the water in the head-race or flume to the surface of the water in the tail-race; and… … ^/Mi^yi.i^y/A Fig. 27. Vertical Section of OvershotWheel. 44 WATER-POWEK DEVELOPMENT //,, the average liead in filling the buckets; h — h^ —//^, the averagehead of descent of the filled buckets; and h^, that part of the headwhich remains between the empty buckets and the tail-race. Thewater strikes…
