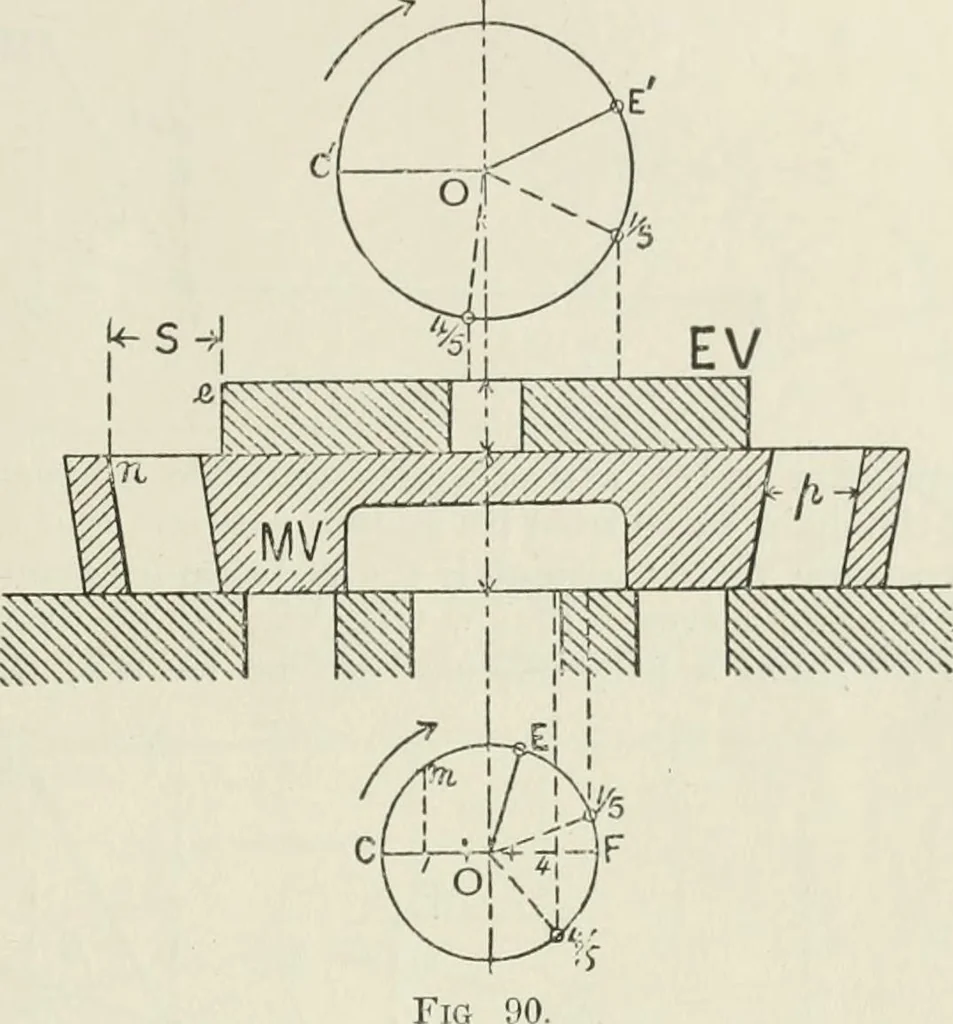

th these lines. Then the edge e of the expansion plate must be soplaced as to cover the port, the centre line of the plates remaining asdetermined by the position of the eccentric. Proceeding similarly forthe other limit, the range of opening and closing of the plates will bedetermined. The plates… … Fig 86 STEAM-ENGINE THEORY AND PRACTICE. Fig. 91, if OC represent the position of the crank, OM tliat of themain-valve eccentric with angular advance 6, and OE that of the
