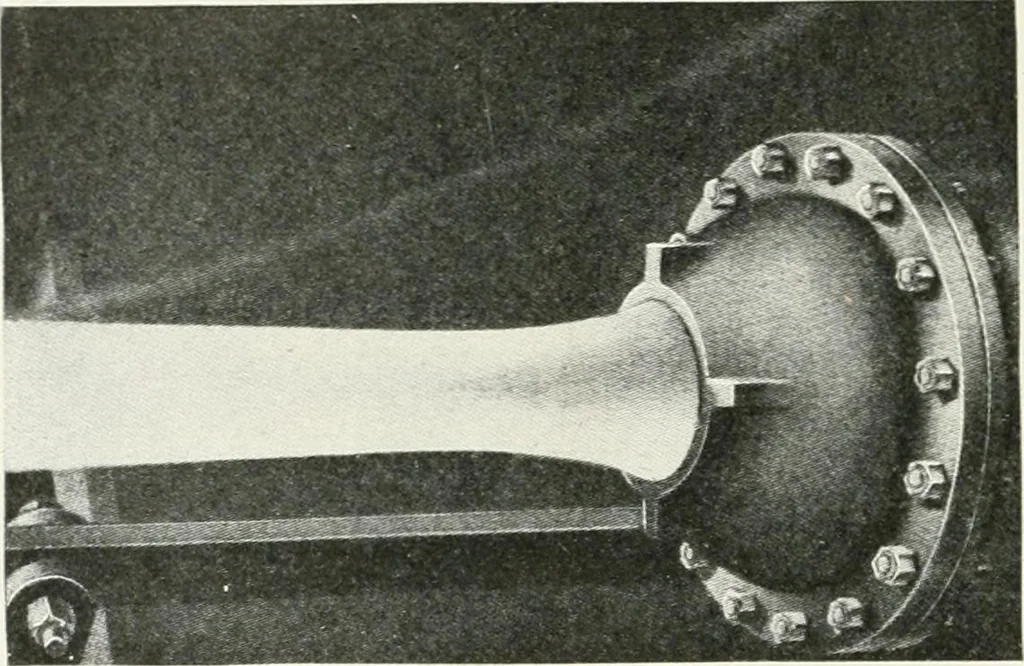

inserted a concentric tapered needle. A change of position of this needleproduces a corre-sponding changeof discharge areaof the nozzle;the amount ofwater used isthus varied, andthe power of thewheel influencedproportionally. The needle regu-lating and deflect-ing nozzle (Figs.51 and 52) is a most… … Fig. 50. Stream of Water from Pelton Needle Nozzle Operat-ing under 390-Foot Head and Developing 1.500 H.P. Note the shadow of needle showing through stream, and theperfect form of jet.
