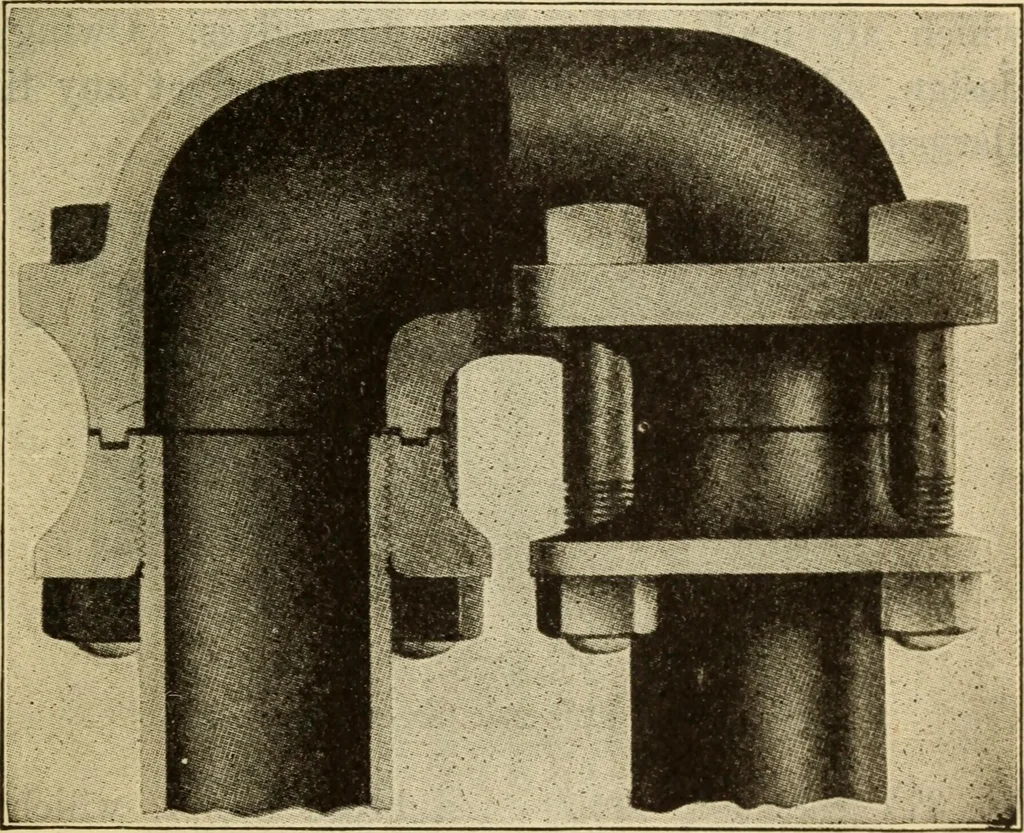

extensively, but the second is usedwhenever extra strong pipe is required, and the third when Double Pipe Ammonia Condenser 891 extremely dirty water is to be handled. The ammonia cir-culates downwards through the annular space between thetwo sets of pipe coils. By this arrangement a compara-tively… … Fig. 374return bend for the atmospheric condenser ammonia gas and the cooling water are in opposite di-rections, the hottest gas comes in contact with the hottestwater and thus fully utilizes the cooling effect of the water.Fig. 374 shows a sectional view of the atmosphericcondenser return bend,…
