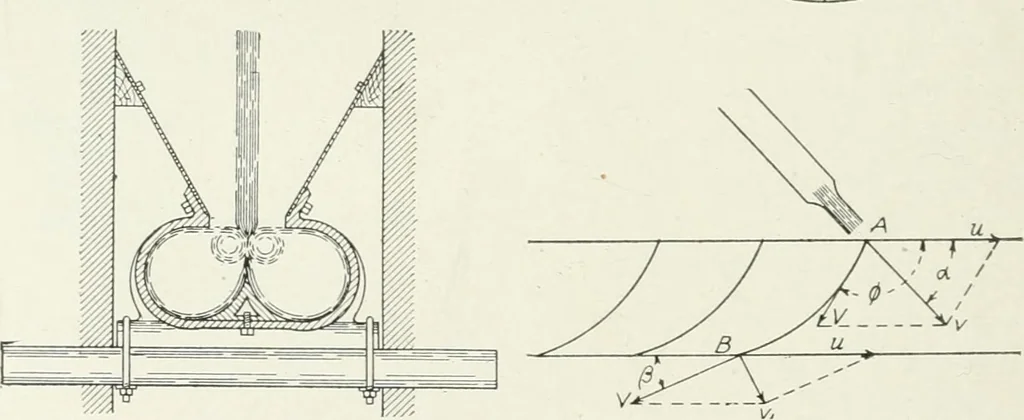

Fig. 56. Eusign Vortex Baffle-Plateas Installed in a Tail-Race. I^ig. 57. Downward-Flow ImpulseWheel. tive, particularly when the water iniavoidably carries infinitesimalparticles of sand. No masonry can long withstand the action of sucha jet, and even iron and steel are rapidly worn away, as if by…
