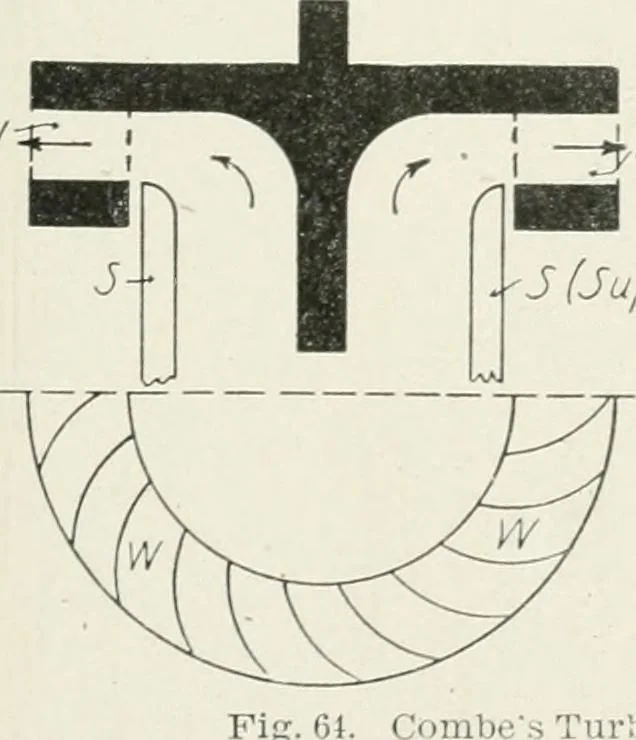

regulating the(juantityof water and thepower. 94. The next advancein hydraulic motor designconsisted in the employ-ment of a large numberof issuing streams, as inthe Comhes turbine (Fig- 6!j. Here the suj)piy pipe furnishes waterdirectly to the buckets, without the directing intermediary of… … \ —^W mzcl Buckzb)J [jupplyPipeJ Combe.s Turbine. 84 AVATER-POWER DEVELOPMENT 95. In 1826 the French engineer Fourneyron unproved theCadiat turbine by placing fixed guide-blades just inside the wheel-ring, around the entire circumference, by means of which the waterreceived a forward direction of…
