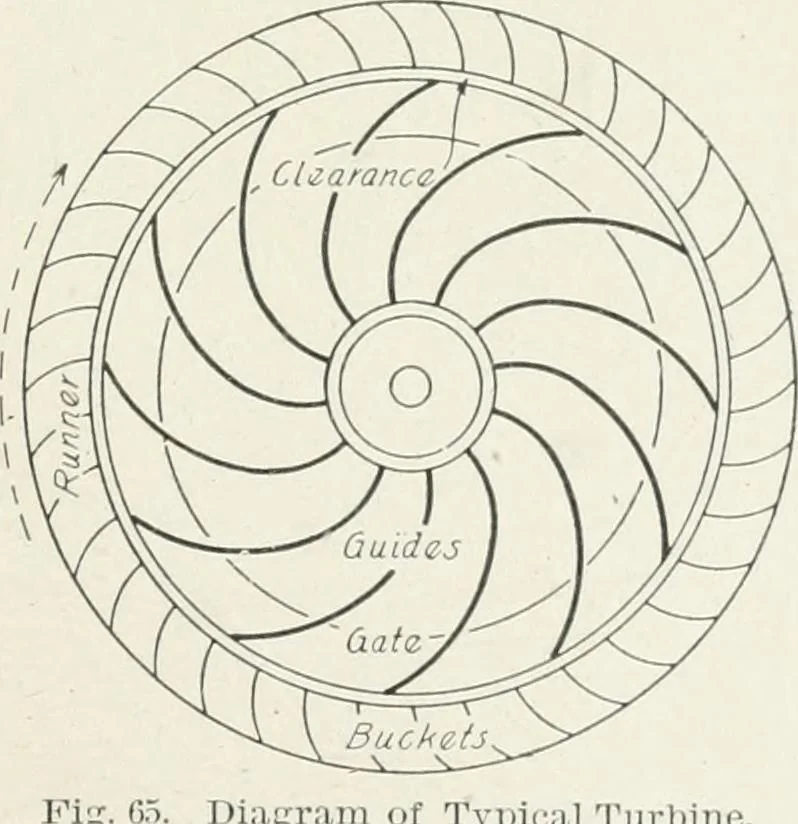

. The direction of flowmay be either outward or imvard;that is, the turbine may have in-icrnal or external feed (Figs. GOand G7). An axial- or parallel-flow turbine is one in which (he dis-timce of a particle from the axis of rotation remains constant duringits passage through the wheel (Fig. 68).… … 05. Diagram of Tj-pical Turbine. 86 WATER-POWER DEVELOPMENT and rcactio7i turbines. ^^If the wheel-passages are not completelyfilled widi water, and if air enters Jreely so that the entire streamwidiin each wheel-passage is under atmospheric pressure, the
