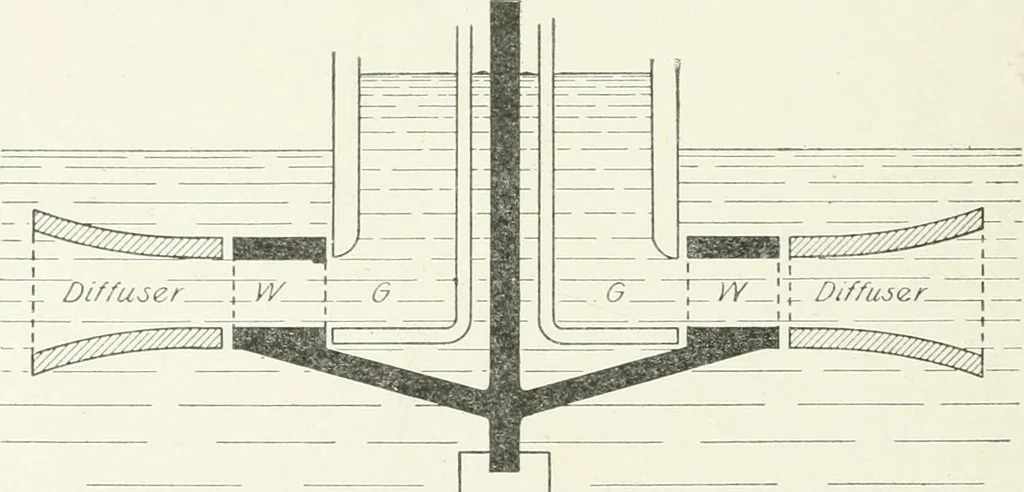

be, in which case only part of the headis lost, as described later. i\ reaction turbine may discharge into thefree air, in which case the same loss occurs; or it may l)e drowned—that is, set below the water level in the tail-race; or it may dischargeinto a suction or draft-tube; in these two latter… … Fig. 78. Illustrating Operation of Diffuser. as it leaves the runner-l)uckets of a radial outward-flow turbine, iscalled a difjiiscr. It usuallv consists of two fixed conical zones flarinout opposite the water edges of the turbine crowns, giving a bell^mouthed or divergent profile to the walls of…
