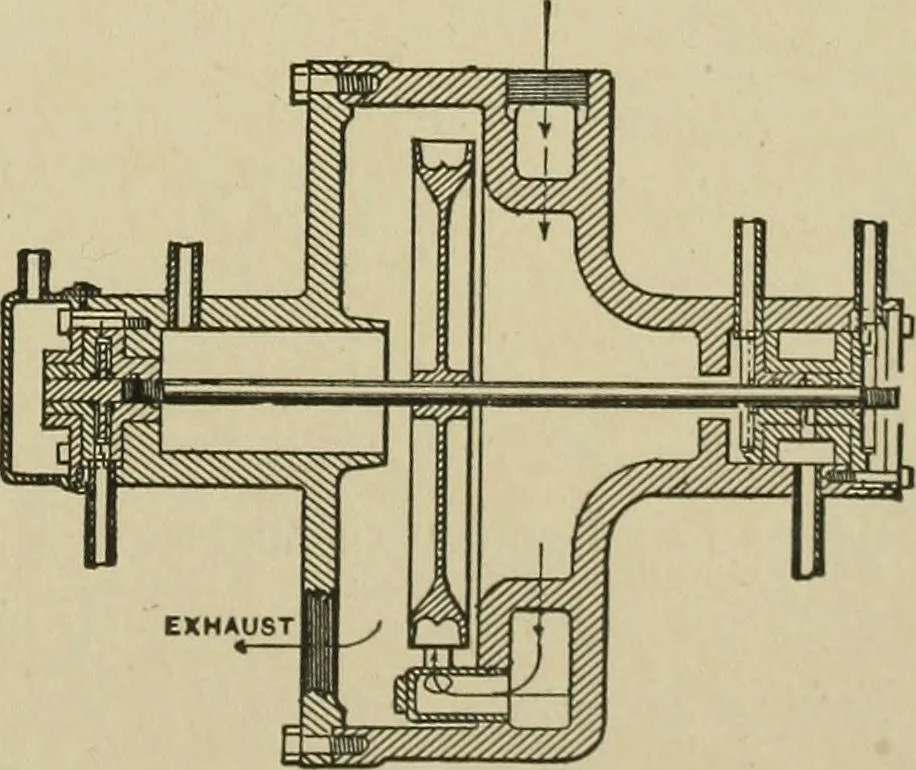

183. Plan showing spring shaft, bearings, lubricating channels and ss STEAM POWER APPLLA>sXE-. steam ducts. Runs by the impact of steam from five nozzles against theouter edge of the buckets of the wheeL The long shaft is to take upthe unbalanced vibration of the disk.
