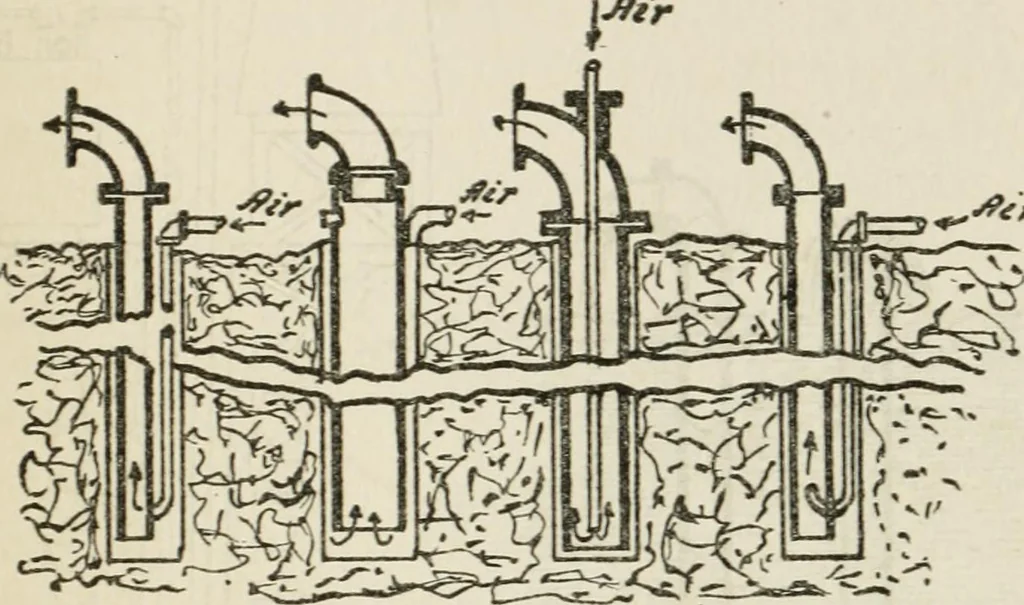

to theiirst cost of the apparatus. The air-lift consists of two pipes—the waterpipe and the air pipe, the latter being the smallerof the tw^o. The water pipe contains a tapped PLUMBING 313 hole near the lower end, into which the air pi^Deis screwed, the latter, in some cases, being ex-tended to… … Fi 122. Different Arrangements of Air and Water Pipes in Air-Lift. There are several arrangements of aii andwater pipes, foui of which are shown in Fig. 122.Air being forced into the water pipe, a hugebubble is formed about the orifice of the air pij)e,as shown at a in Fig. 123, which fills the…
