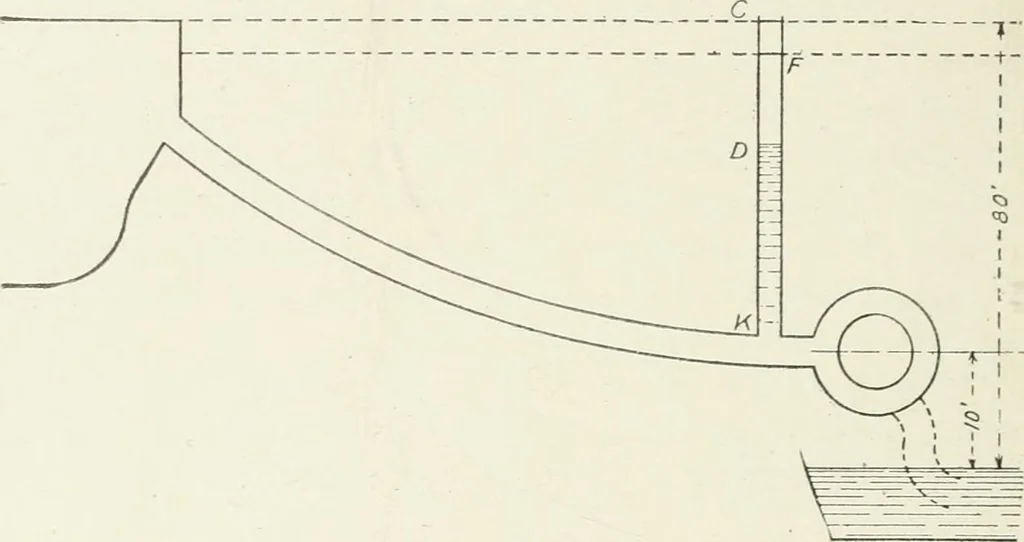

section, as this form offers great resistance to collapse. They must be thoroughly air-tight, as any leakage of air will destroy the vacuum, with consequent loss of draft-head. AMien the power-house is built with a concrete substructure, it will often be found advisable to mould the draft-tube… … Fig. 79. Diagrammatic Representation of Turbine Installed. Showing Penstock,Heart-Race, and Tail-Race. feet long. The total drop from head-race to tail-race is SO feet. The tur-bine is installed 10 feet above tail-water. Discuss its operation. The mean velocity of flow in the })ipe is: 0.4 feet per…
