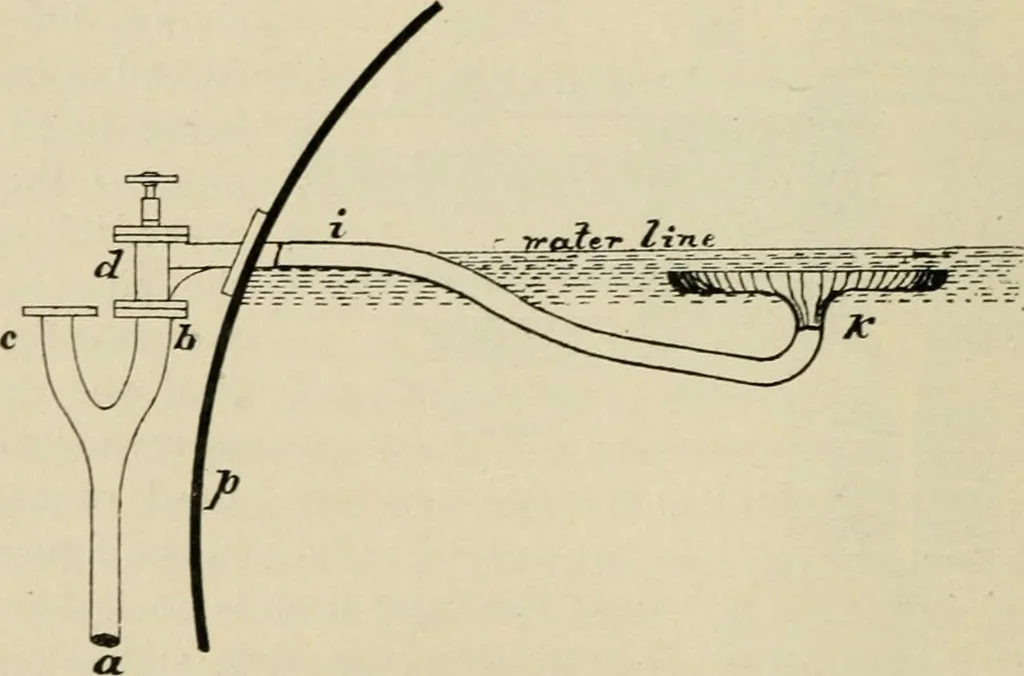

water, and the largervalve being carried along with it compresses the coil spring andseats itself, thus shutting off the flow automatically. The smaller valve can then be safely closed, a new glass can beinserted, the small valve opened again and the steam and waterreadmitted to the glass. Art.… … Fiif. 10.—Surface Blow. branch pipe a has angle valves fitted to each of the flanges c andh, and these valves are flanged and bolted to the shells of adjacentboilers. From each valve is led an interior pipe i which ends ina sciim-pan just under the surface of the water near the centre ofthe boiler.…
