Steam turbine engines : their construction, care and operation (1910)
Swingle, Calvin F. (Calvin Franklin), b. 1846 · Chicago : Frederick J. Drake · leaf 20

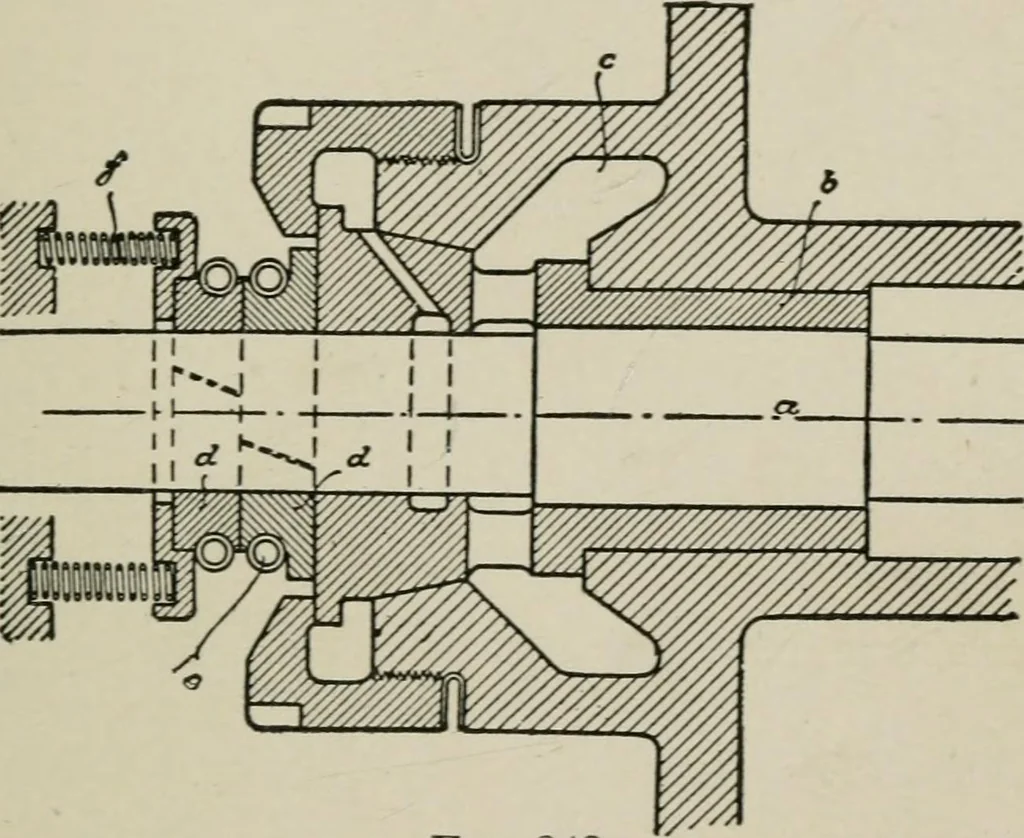

the loss is greatly decreased. Cunstrufbun IT) Tt also V ,i,as to have a favorable influence when the steamin leaving t )S narrow space flows radially inwards, that is,it helps to overcome its centrifugal force. Fig. 240 shows the stuffing box of a Scliulz turbine. Xoprovision is here made for… … Fig. 242 Fig. •?41 shows a stuffing box by the same designer, builtof rings, in which the inner rings are loose, but are madewith a neat fit. The Eateau stuffing box is shown in Fig. 24?. Themain part consists of the shaft, a, enclosed by a close fit-ting box b, of suitable metal. The steam leaking…
Steam-engines -- Design and construction · Steam-turbines -- Handbooks, manuals, etc
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
