Hydraulic motors, with related subjects, including centrifugal pumps, pipes, and open channels, designed as a text-book for engineering schools (1905)
Church, Irving Porter, 1851-1931 · New York : J. Wiley & Sons; [etc, ] · leaf 211

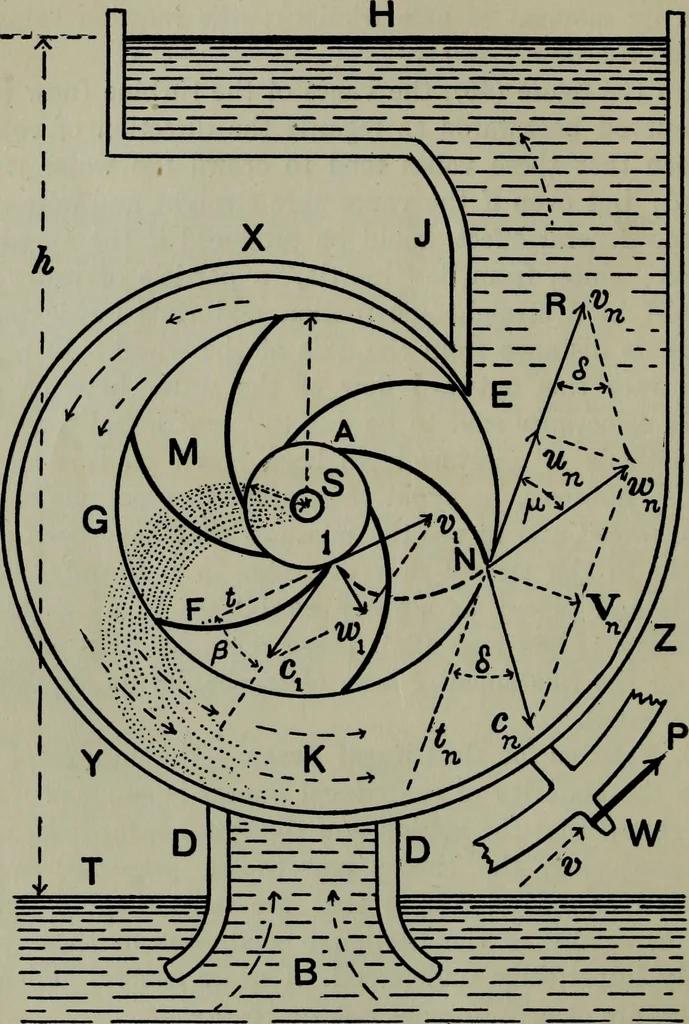

frictional conditions in these pumpsare only imperfectly understood. Certain general indications,however, are clearly brought out by theory. The pump to be considered is one with a horizontal shaft,and is placed above the source of supply, a suction-tube beingtherefore necessary. Fig. 87 gives a… … Fig. 86. 170 § 106. CENTRIFUGAL PUMPS. 171 passageways, and uniform angular velocity co of the impeller,are postulated. Fig. 86 gives a vertical section, at right anglesto the shaft, showing the (six) impeller-blades or vanes, suchas A. .N, the supply-reservoir T, and receiving-reservoir H;also…
Hydraulic machinery
