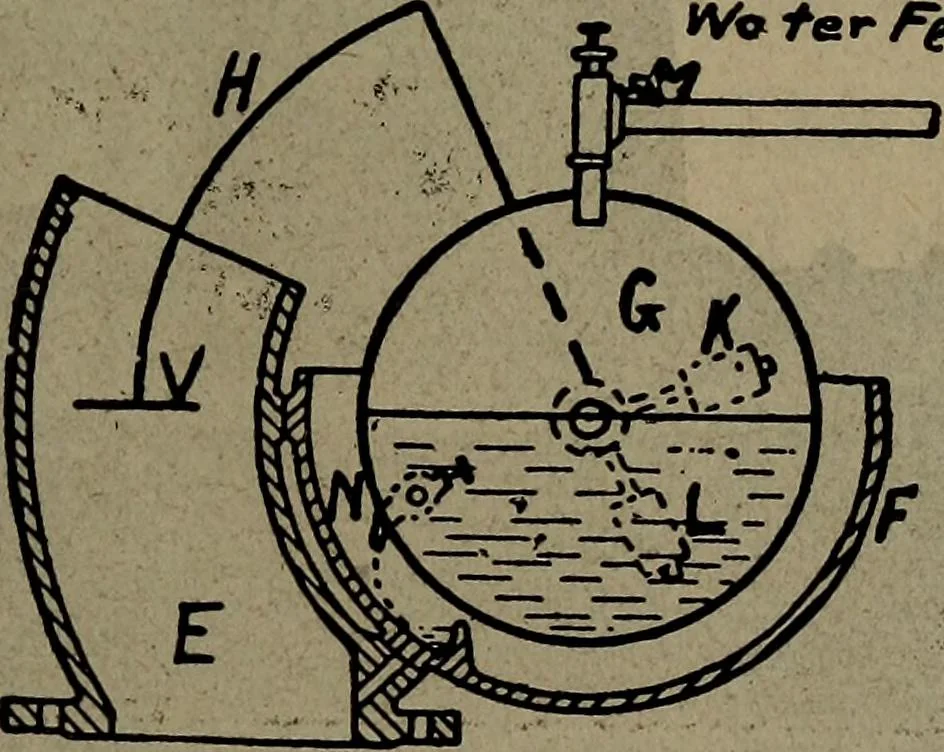

graduates the supply for heavierloads. Smith Suction Producer.—Fig. 322 shows a view of theSmith Automatic Suction gas producer^ built by the SmithGas Power Co.^ Lexington^, Ohio—Fig. 323 is a sectionalview of the regulator^ which is also shown in perspectivein Fig. 324 mounted upon the superheater… … Fig. 323 water required into steam. The regulator consists of acurved iron tube E through which the air is drawn into thesuperheater^ then on and through the fire bed in the pro-ducer. Vane V, Fig. 323^ is located in the curved tubeand is connected to water cylinder G which is mounted onknife edge…
