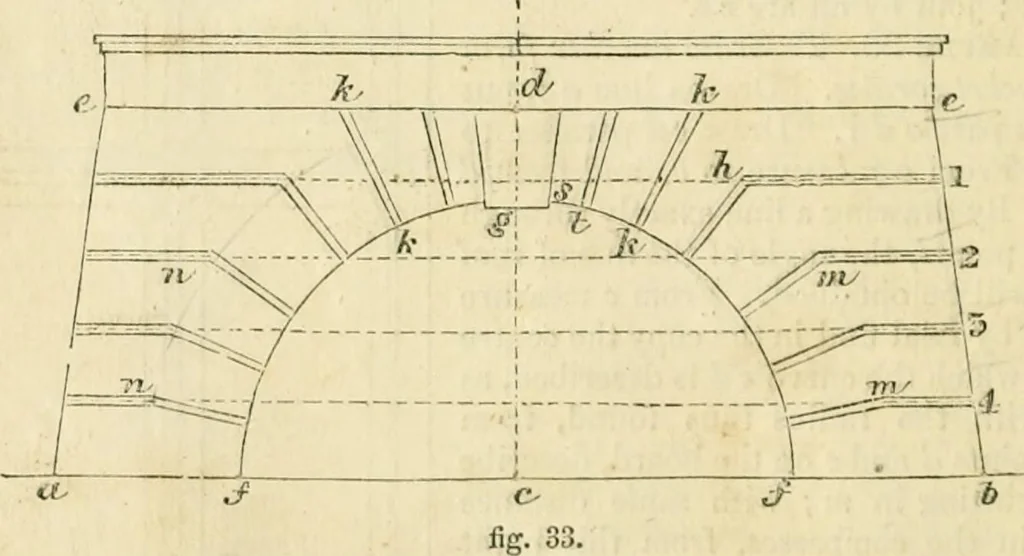

lines m, m; and parallel to same lines, lines s, s touching the circles. FromJ^e, ab, lay ofito nn lines equal to m; and from m, to ss equal to thedistance of the line m s from c d; join j^ s and the points corresponding.Example 3-). To draio the basement arch beloio the principal entrance toa… … ■with c/as radius, describe the semicircle//. From c measure to d, drawa line througli this parallel to a b. Measure from d to e, e; join ae, be;l)ut in the key-stone d(j. Divide b e into five e(iual parts, and from these])oints, parallel to a b, draw lines through d c to the line a e. From…
