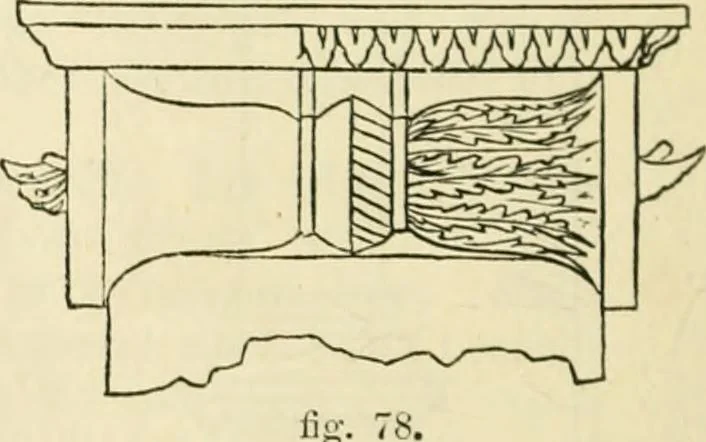

Example 78, fig. 78. The method of describing the scroll termed the* volute is explained in Example 79, fig. 79. Draw a />, c d at right angles ; let ef be the dia-meter of the eye of the volute corresponding to the breadth of the astragala (see fig. 76) ; with half ef from the point where a h,…
