Illustrated catalogue and general description of improved machine tools for working metal (1899)
Sellers, William, & co. [from old catalog] · Philadephia, Levytype company · leaf 102

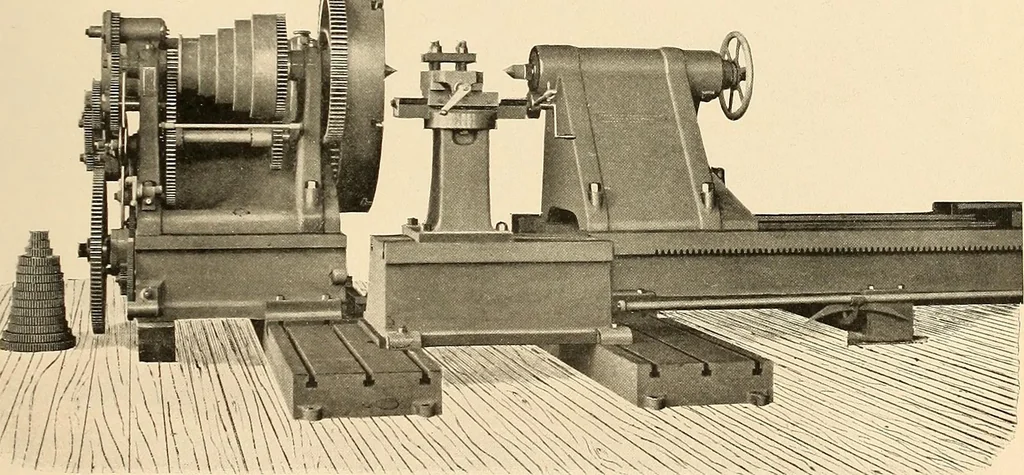

d ratchet lever for moving poppet-head. Fast and loosepulleys on countershaft, 20 diameter for 4 open and cross belts, and shouldmake 122 and 124 revolutions per minute. As shown in illustration, lathe is ar-ranged with bed in two parts, so as to form gap-lathe when required, bed beingsupported on… … 72 SELF-ACTING SLIDE-LATHE.For Screw-Cutting and Turning. Arranged as gap lathe to take work i6 ft. diameter b} 3 ft. face. Bed isparted and auxiliar}^ bed, carried upon two of the shoe-plates (which are extendedfor the purpose), supports special rest for turning the large diameters. This restis…
