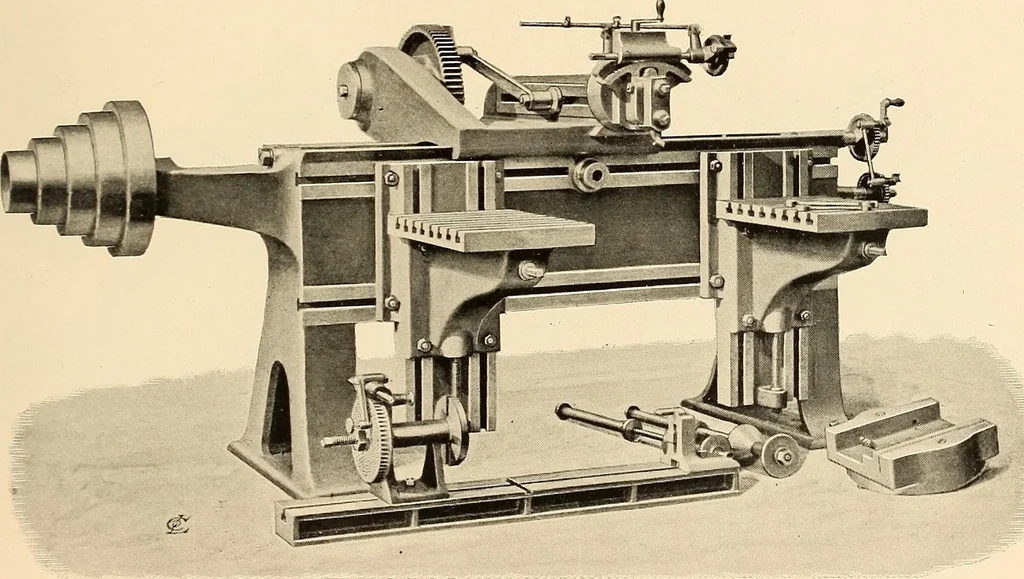

ar work. Rczwlving hollow spindle in bed to carry mandrels and cones forcircular work, clamping vise, and centre-heads with index plate, furnished to order.Countershaft with two sets of fast and loose pulleys, one for short stroke, 8 by4, to run 200 revolutions, and one for long stroke, 16 by 4, to… … 16 SHAPING MACHINE. Stroke adjustable from o to 16, with Whitworth motion, giving uniformcutting speed and quick return. Shaping bar adjustable 25 in addition to thestroke. Bed 6 ft. 5 long. Movement of saddle on bed, 66. Tables adjustablevertically and horizontally. Extreme distance between outer…
