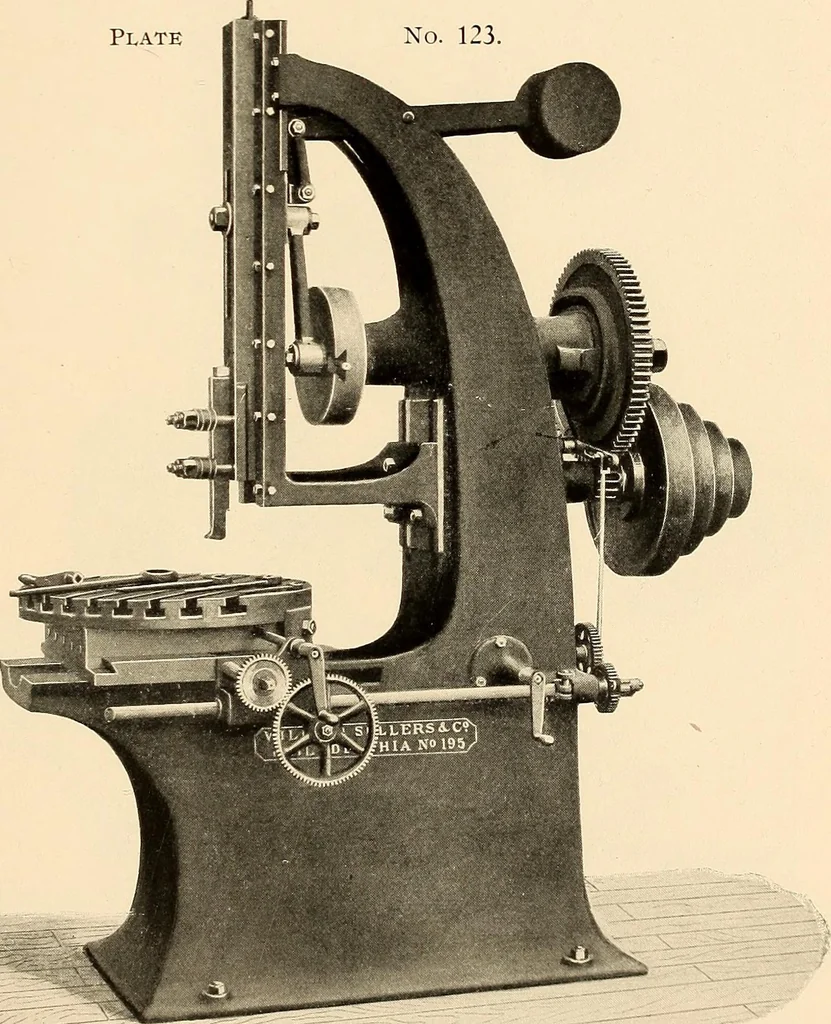

much as possible. Thematerial has been distributed so as to produce the greatest stiffness with the leastweight, to make the machine easy to handle, and not to sacrifice convenience toan appearance of great weight and strength. Size. Stroke. Diameter of Table exclusive of Water Trough.… … 36 SLOTTING MACHINE- From face of tool to frame, 18. Stroke adjustable from o to 10. Uni-form cutting speed and quick return. Table, 24 diameter, with rotary, trans-verse, and longitudinal motions. Variable self-feed occurring at top of stroke,and all crank handles in a convenient position. Table…
