Illustrated catalogue and general description of improved machine tools for working metal (1899)
Sellers, William, & co. [from old catalog] · Philadephia, Levytype company · leaf 198

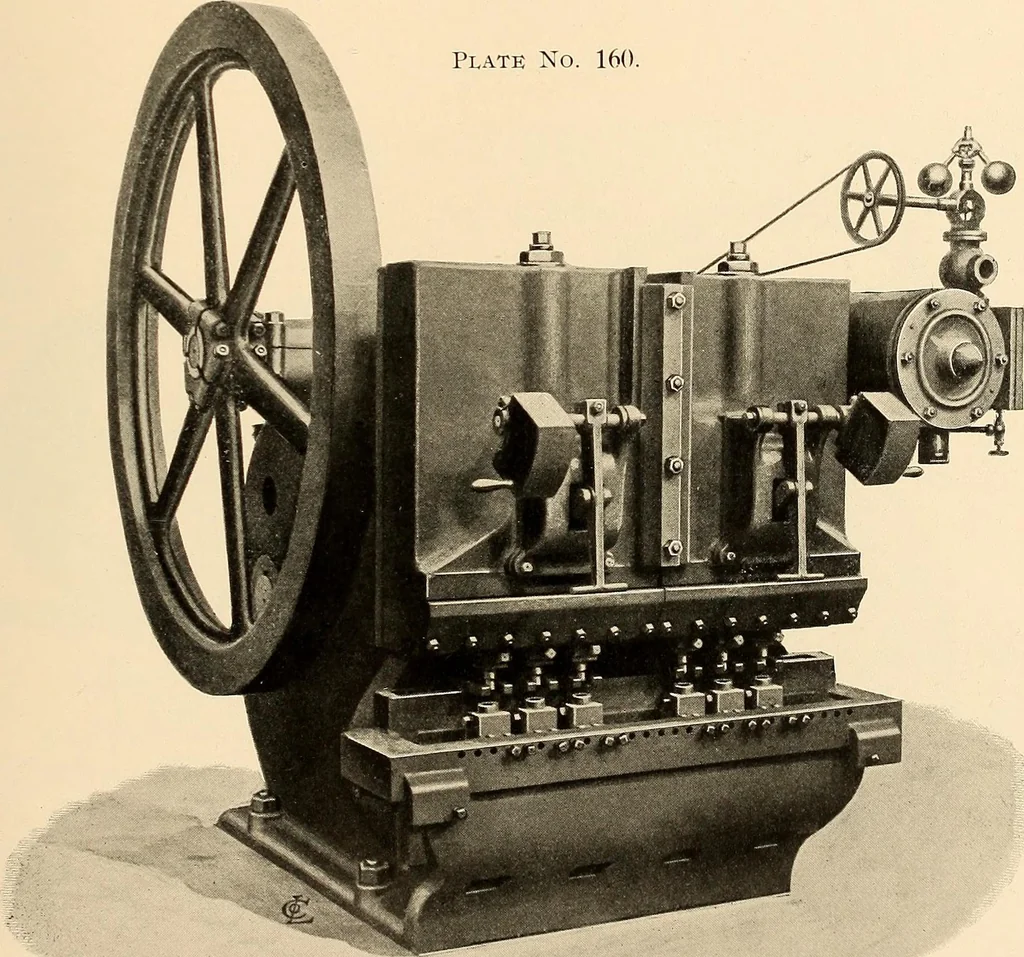

SPUCE PLATE PUNCHING MACHINE. Driven by independent 10 x 12 engine attached to housing. Greatestdistance between outside punches, 20. Complete with 4 punch holders, 4 dieholders and 4 sample punches and dies for same. Wm. Sellers & Co., Incorporated, Philadelphia, Pa. 93 … DOUBLE LEVER PUNCHING MACHINE FOR SPLICE PLATES. Designed for modern heavy railway splice plates, having six holes perplate. Adapted for punching through flat or angle plates. All si.\ holes at onetime. Punches and dies adjustable over length of 45. Sliding-heads drivenindependently by separate…
Machine-tools · Machinery
