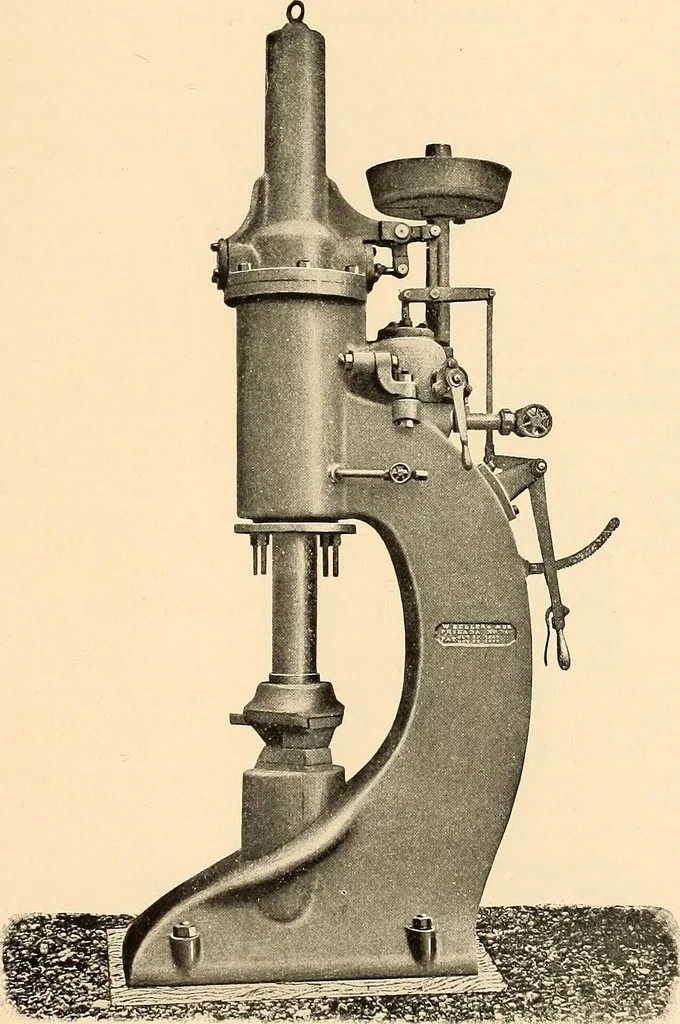

, and furnish with our hammersa suitable nozzle and exhaust pan with pipe connections. In setting up the ham-mer a thin sheet-iron exhaust pipe should be used, suspended directly over thepan, but not resting upon it. The exhaust pipe is thus relieved of the strain dueto the shaking of the hammer,… … 400-LB. HAND AND SELF-ACTING HAMMER. With cylinder 10 diameter, stroke 15^^. With steel dies, and steel falsetop to anvil block. Balanced piston-valve with steel packing rings. Collin ex-haust arrangement and qviick-closing throttle valve. Check valve in exhaustpassage to regulate force of blow.…
