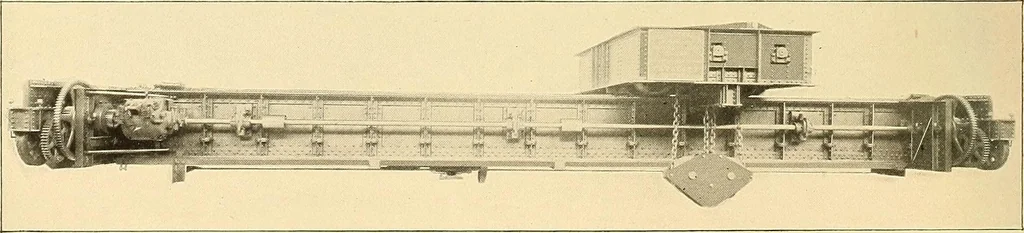

50-TON TRAVELLING CRANE.—Sikgle Motor Type. Shows end of bridge with motor and operating machinery in place. Poweris transmitted to the trolley by square shafts supported in our patent tumblerbearings, steel tired bridge wheels are 37 diameter. Hanging cage for operatornot shown. Plate No. 246. … 75-TON TRAVELLING LADLE-CRANE. Welman type. Two trolleys, one on upper deck of bridge with two blocksfor ladle hangers, and a 20-ton trolley running within the bridge for tipping ladleand handling light loads. Driven by seven reversing motors. Wm. Sellers «& Co., Incorporated, Philadelphia, Pa.…
