Illustrated catalogue and general description of improved machine tools for working metal (1899)
Sellers, William, & co. [from old catalog] · Philadephia, Levytype company · leaf 48

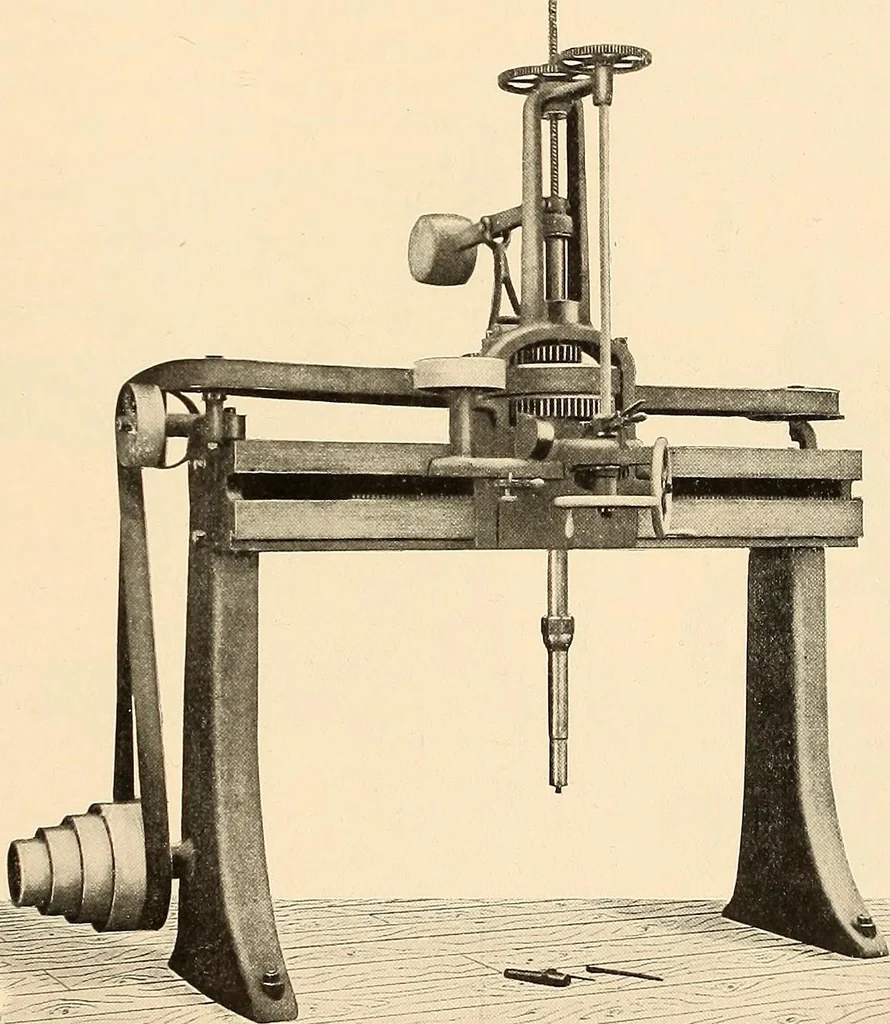

edge of a plate or key-seat cj^inders 20 diameter, of anylength. Table, 24 square, with 24 motion at right angles to the plane inwhich the saddle moves ; table raised and lowered by power. Complete withcountershaft, full set of wrenches, and sample drill socket. Fast and loosepulleys on… … TRAVERSE-DRILL WITHOUT COTTER ATTACHMENT. Distance between uprights, 74. Height under cross-head from floor, 52.Diameter of spindle, 2^ ; stroke of spindle, 174. Feed of saddle along cross-head by hand only. Power feed of spindle through improved friction discs.Machine complete with countershaft,…
