Illustrated catalogue and general description of improved machine tools for working metal (1899)
Sellers, William, & co. [from old catalog] · Philadephia, Levytype company · leaf 63

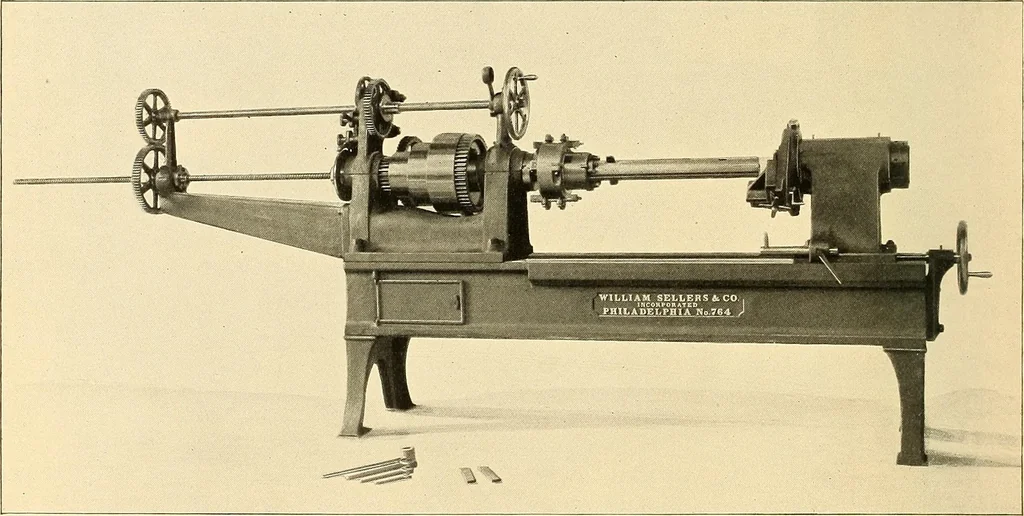

y .004 to coarse finishing feedof nearly y^. It is powerfully geared. Has quick hand traverse to spindle.Bed has tool closet with flat key lock. Fast and loose pulleys, 16 diameter, 4belt. 135 revolutions per minute. ]\^e iiiakf a z-(rr/c(v of bon)!o hrrs, cuticrheads a^id supports adapted for… … HORIZONTAL BORING MACHINE, WITH FIXED TABLE.Outboard Support with Facing Rest. Same machine as shown in Plate 42, with modifications for special work.Spindle, 4 diameter, 30 stroke, is slotted to carry cutter head and boring tools.End support for facing rest with star feed adjustable along bed. Wm.…
Machine-tools · Machinery
