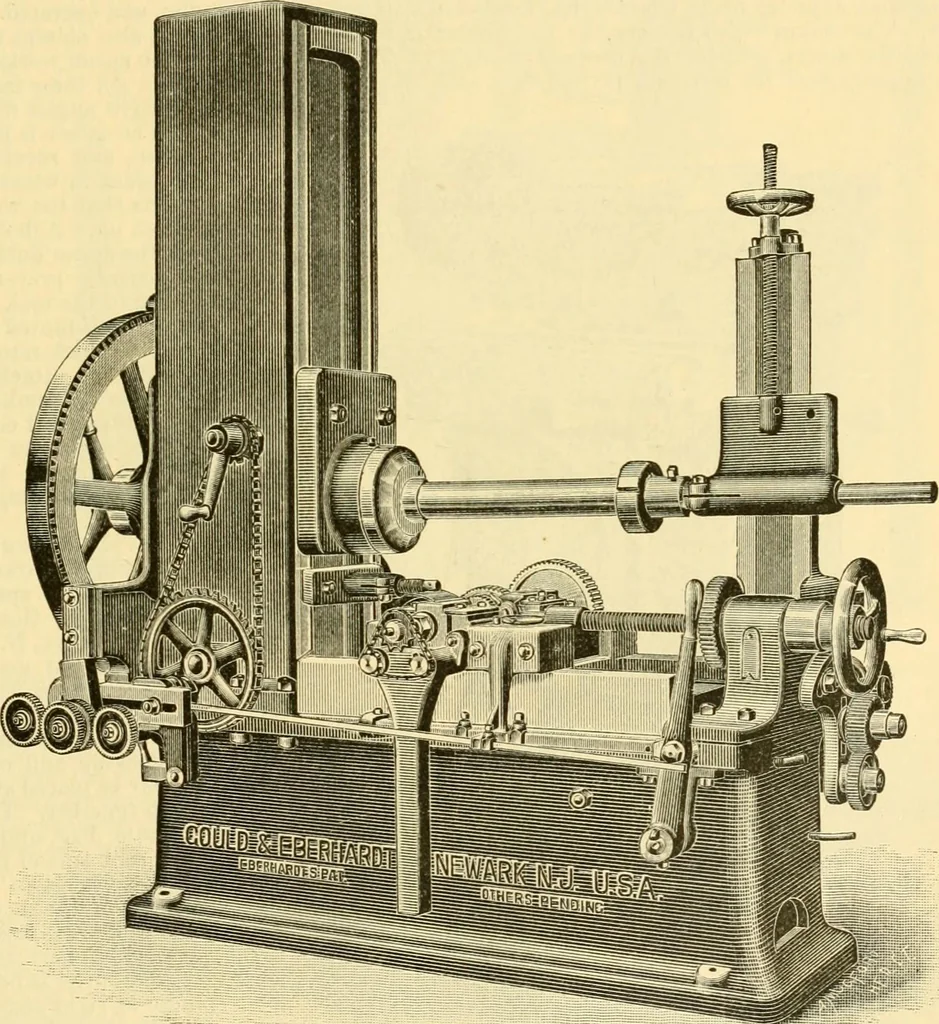

ribed is placed on the side of the apex opposite that on whichthe blank is {)laced. in order to avoid an interference with the tool. The feed mechanism effects a slow intermittent movement of the semicircular plate whichsupports the inclined arbor, thereby producing a slowly progressing rolling of… … Fig. 4.—Automatic gear-cutter. The arbor carrying the blank can be rotated independent of the rolling: cone by means of aworm-wheel, worm and index plate, which enables the blank to be presented to the cutting de-vice at properly spaced divisions corresponding with the number of teeth of the…
