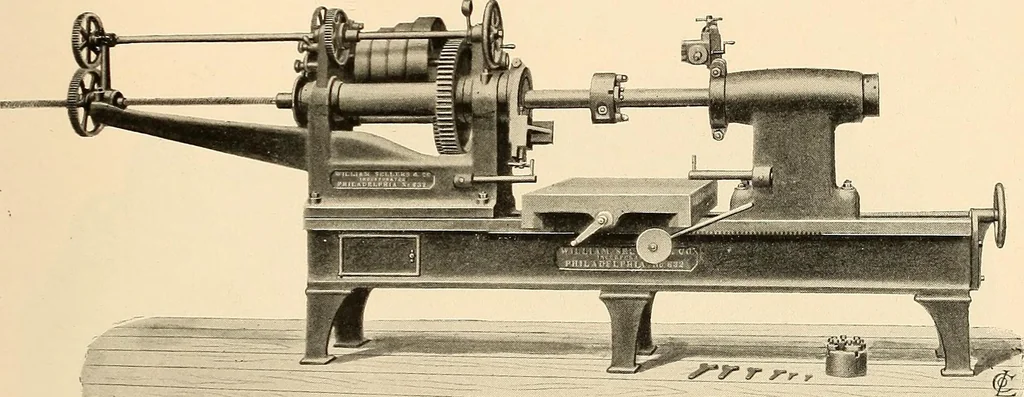

HORIZONTAL BORING MACHINE, WITH FIXED TABLE.Outboard Support with Facing Rest. Same machine as shown in Plate 42, with modifications for special work.Spindle, 4 diameter, 30 stroke, is slotted to carry cutter head and boring tools.End support for facing rest with star feed adjustable along bed. Wm.… … HORIZONTAL BORING-MACHINE, WITH COMPOUND TABLE. Especially designed for boring and facing cjdinders. Outboard support adjustable along the bed by screw, and provided with sleeve carrying facing-rest onenlarged end. Similar facing-rest on sleeve in driving head. Compound table^28 wide, 48 long,…
