Illustrated and descriptive catalog of Whitin cotton combing machinery : and handbook of useful information for overseers and operatives (1922)

Whitin Machine Works (Whitinsville, Mass.) · Whitinsville, Mass. : Whitin · leaf 35

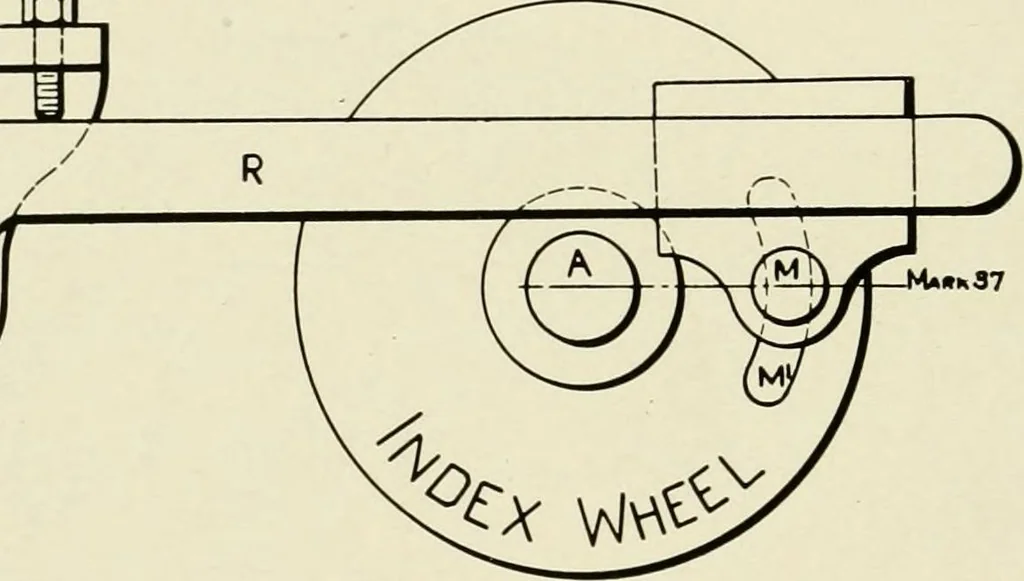

An illustration from Illustrated and descriptive catalog of Whitin cotton combing machinery : and handbook of useful information for overseers and operatives, 1922, leaf 35 — Fig. 2. Note 3.—The stud M should always be in this positionwhen setting, but may be moved a little either way tomake a good piecing, according to the cotton worked,without affecting any other setting. Note 4.—The position of this stud determines thetime when the nipper reaches the detaching…

Textile machinery · Cotton machinery

Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
