Illustrated and descriptive catalog of Whitin cotton combing machinery : and handbook of useful information for overseers and operatives (1922)

Whitin Machine Works (Whitinsville, Mass.) · Whitinsville, Mass. : Whitin · leaf 37

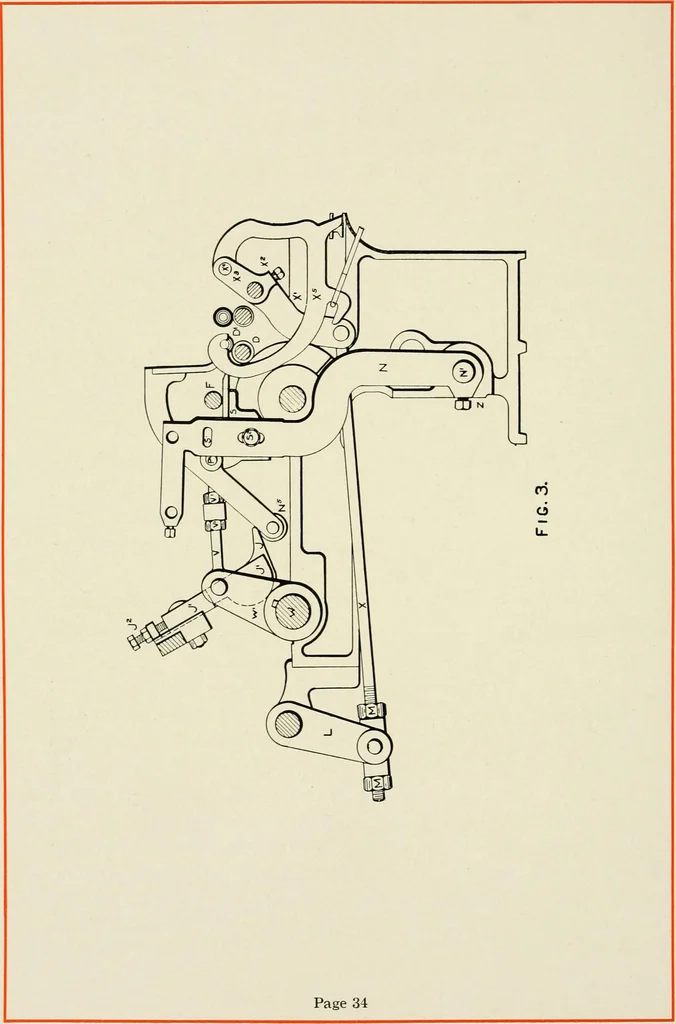

An illustration from Illustrated and descriptive catalog of Whitin cotton combing machinery : and handbook of useful information for overseers and operatives, 1922, leaf 37 — ent on thecylinder is uppermost. Put the nipper in and, the springsbeing off, turn backwards to No. 33. Then press thetop knife gently on the bottom one and see that it clearsthe needles. Loosen the forked levers on the shaft Wby driving out the keys (Fig. 4). Couple the connectingrod by the screws…

Textile machinery · Cotton machinery

Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
