Weaving; a practical guide to the mechanical construction, operation, and care of weaving machinery, and all details of the mechanical processes involved in weaving (1909)

American School of Correspondence, Nelson, H. William (Hector William), b. 1869 · Chicago, American School of Correspondence · leaf 32

An illustration from Weaving; a practical guide to the mechanical construction, operation, and care of weaving machinery, and all details of the mechanical processes involved in weaving, 1909, leaf 32

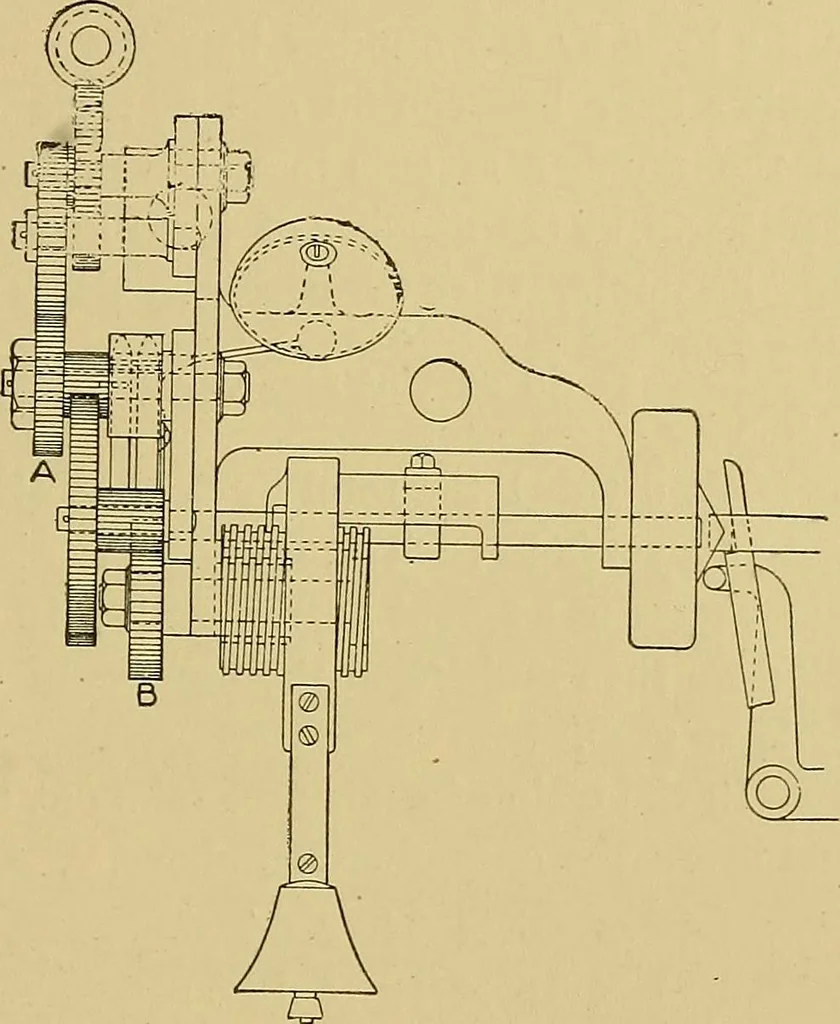

Fig. 14. The hub of the leese gear is cut in the form of a worm, witha slot in it, and at every turn of the hub a catch point on a smalllever drops in the slot. This lever is connected with the shipperrod, so that when the machine is stopped a bell is rung. If morethan 1,000 yards are required, say…
