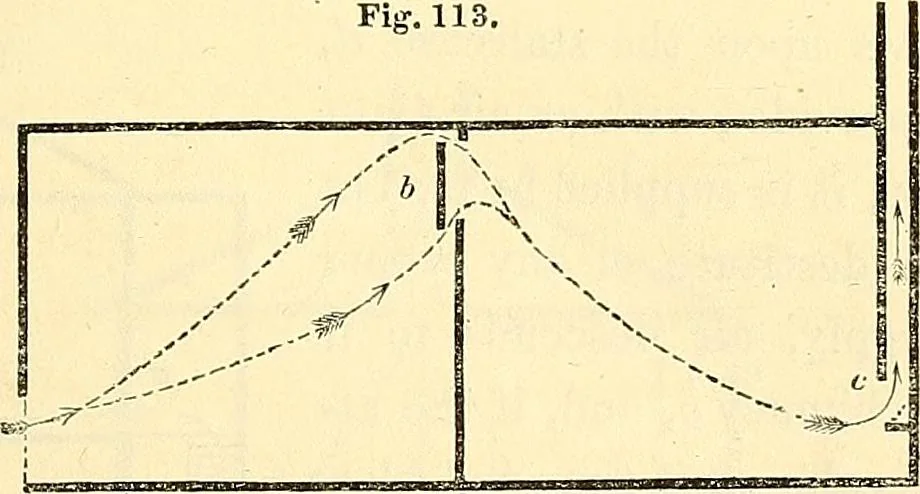

275. Fig. 112.—Three contiguous apartments connected fora temporary purpose, so that fresh air is supplied from a to b,diffused at b, and withdrawn by a powerful fire in c. 276. Fig. 113.—Another arrangement by which one room c,not used for any other purpose, is made, with the assistance ofa common… … 277. Fig. 114.— When a door or passage e, is the only meansof supply for a large fire in another room, this fire often drawsair from any adjoining apartment d, which then smokes offen-sively, and, in calm weather, air often escapes from the chim-ney b, darting at once down to d, through the…
