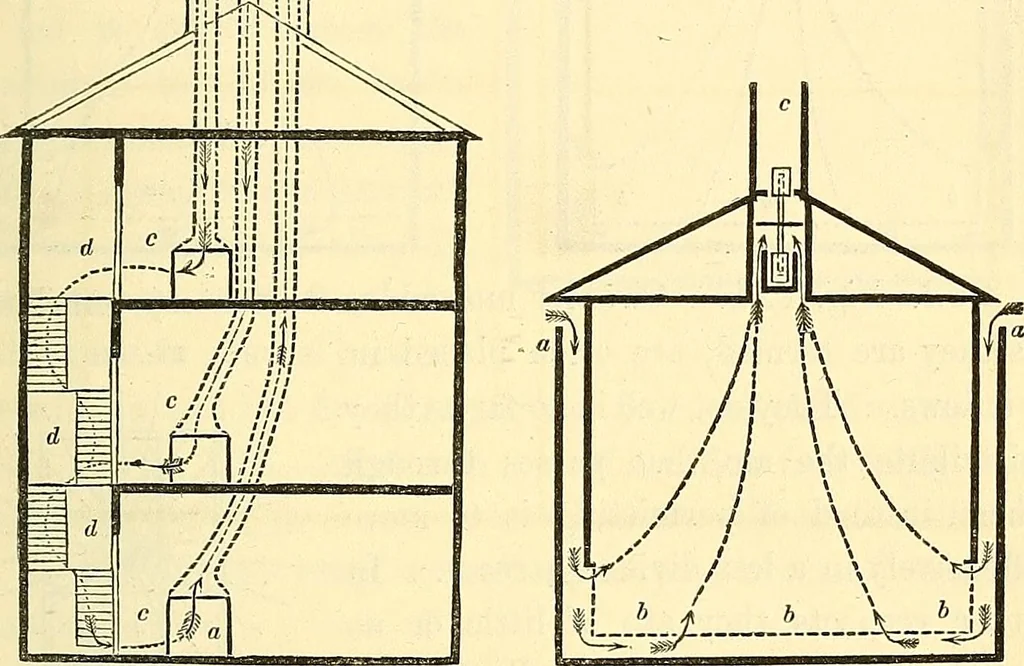

ELEMENTARY ILLUSTRATIONS OF VENTILATION. 133 279. Fig. 116 illustrates a similar action with three apart-ments, the kitchen-fire at a being supplied through d with airfrom c and c. 280. Fig. 117 shews the position of a fanner in the roof ofan apartment to be worked there, so as to induce… … 281. Fig. 118 indicates the position of the same instrument Fisr. 118.
