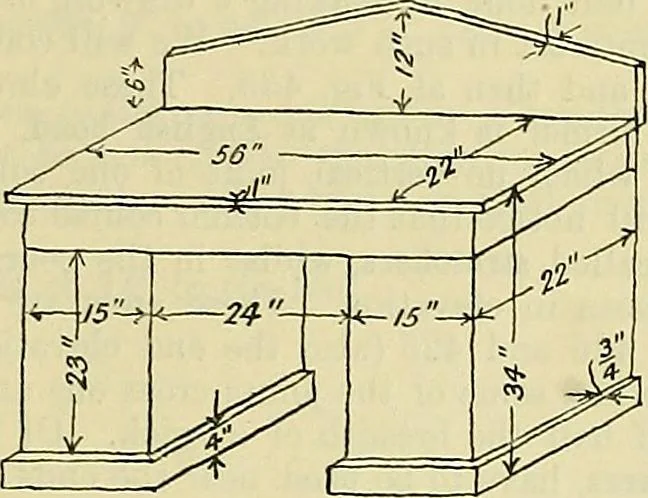

417, 418.—Front and end elevations of stand. better showing the Avay the legs are arranged. Draw the two views (Figs. 420, 421) and add a plan, dotting in the legs, etc., to ascale of li = 1 ft. 132 MISCELLANEOUS DRAWING EXERCISES IN WOODWORK, BRICKWORK, AND MASONRY 133 229. Diniag-room…
