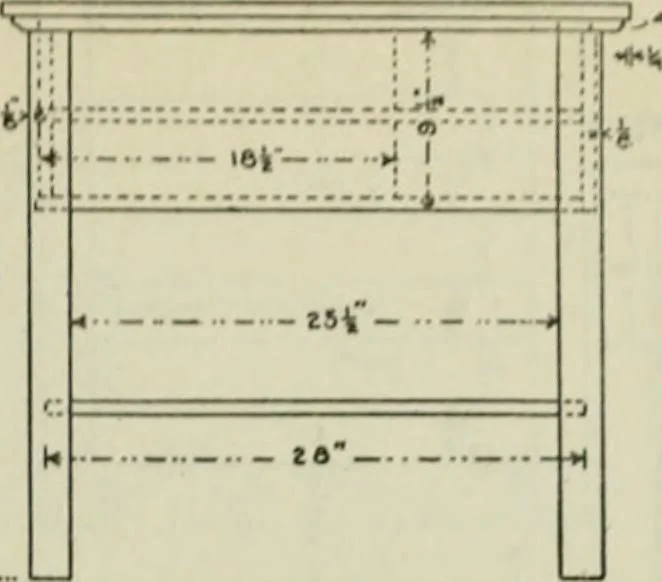

y 30% by 42% inches, S-2-S.Legs, 4 pieces, 2% by 2y2 by 29% inches, S-4-S.Side rails, 2 pieces, % by 4% by 35 inches, S-4-S.End rails, 2 pieces, % by 4% by 23% inches,S-4-S. Stretchers, 2 pieces, 1 by 3 oy 23% inches, S-4-S.Shelf, 1 piece, % by 22 by 39 inches, S-2-S.Slats, 10 pieces, % by 2% by… … E.MO PLATE 140 B—HOW TO MAKE A LIBRARY TABLE Material Required Top, 1 piece, •% by 34 by 56 inches, S-2-S.Posts, 4 pieces, 2>4 by 2V4 by 30 inches, S-4-S.Shelves, 2 pieces, % by 13 by 28V2 inches, S-2-S.Ends, 4 pieces, % by 10 by 28 inches, S-2-S.Backs, 2 pieces, % by 10 by 12 inches,…
