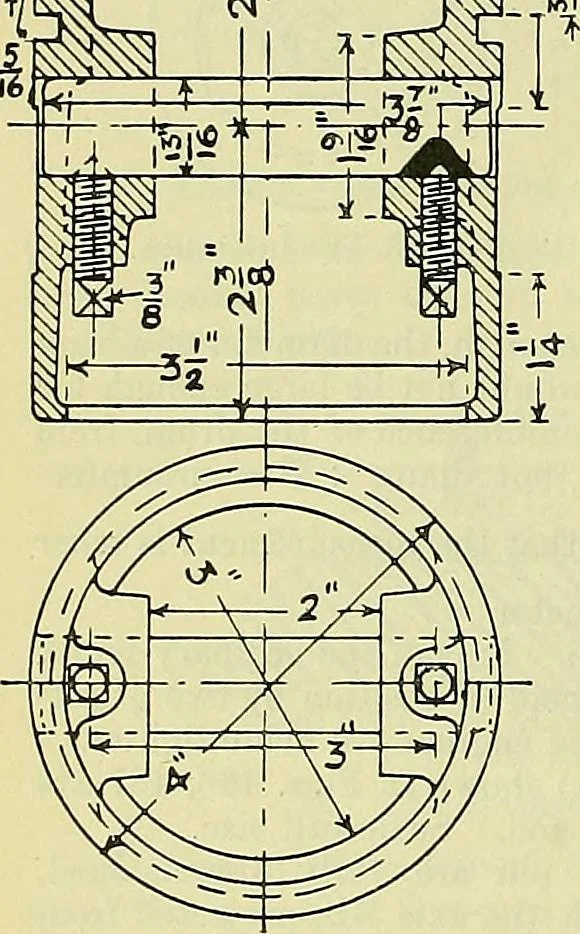

parate drawings of each part of the rod. Scale full size. 253. Cast-iron Bracket with Pin.—The pictorial views ^ (Figs. 488, 489) of the bracket and pin are fully dimensioned,and you may draw an elevation looking on the face AA, a plan, and a sectional elevation taken through the axis BB, projected…
