Information; elementary electricity, motor car electric systems, the gas engine from an ignition point of view, driving the car (1920)
Phillips, Harvey Elmer, 1874-1948 · Dayton, Ohio, Auto Electric Systems Publishing Company · leaf 251

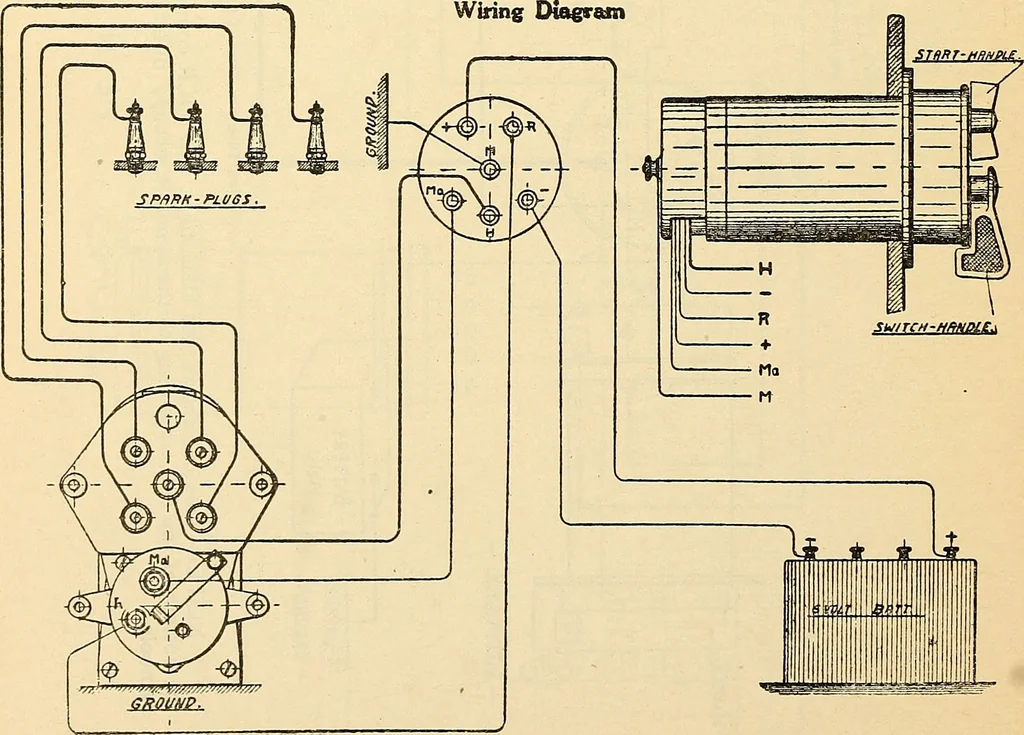

ar single instrument. The types EA, EU, and ED are identicalin design and construction, the only difference being in size. The coils which are used in connection with these magnetos for dual ignitionare known as types D2U, DCR, and DT. The D2U and DCR are non-vibratingand the DT is equipped with a… … Fig. 15. MAGNETOS 249 switch is thrown to the Bat position, providing the battery breaker mechanismcontacts are closed. If they happen to be open, which depends upon the positionof the motor, by pressing the button on the coil-cover, the proper connection isestablished and the vibrator is set in…
Automobiles
