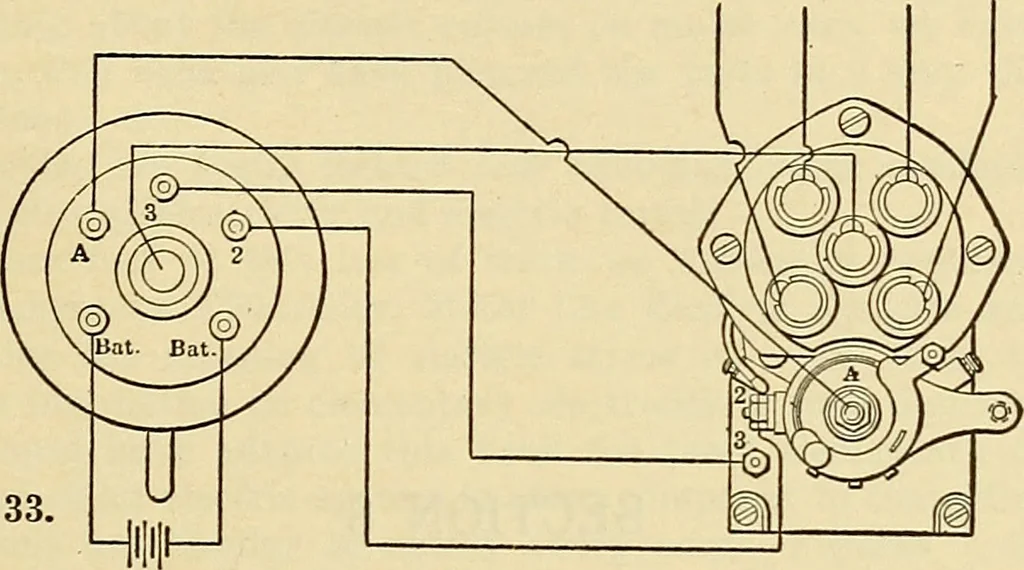

so that a bad contactresults, they can be dressed flat with a fine file, being careful to not file off morethan is absolutely necessary. When resetting these points be sure that the camis in the proper position and that the points open not more than .025 of an inch. The gap of all spark plugs used… … Wiring Diagram of Model A Magneto and T S A Transformer NOTE.—On Models AX and AW Magnetos the wire leading to Post A on the Trans-former Is connected to the Brush Holder at the driving end. of the Magneto.
