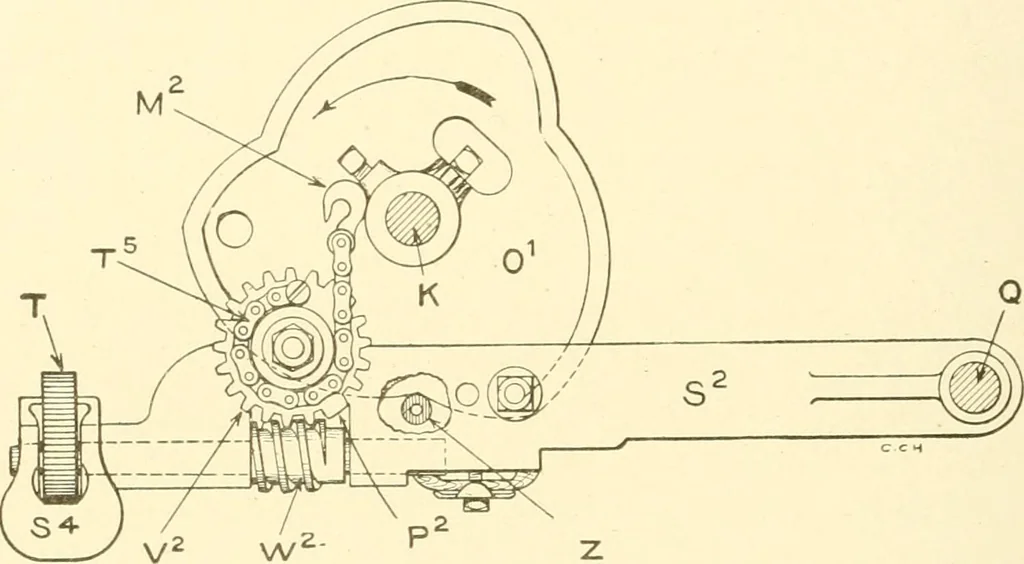

oes higher until it reaches the top of the bobbin. This 291 250 COTTON SPINNING is accomplished in the following way: The worm, W-, instead ofengaging a rack as on the warp builder, is in gear with a worm gear,V-, the hub of which is made as a drum upon which the builder chain,T^, is wound. The… … Fig. 213. Filling Buiklei-. turned, it is gradually unwound and the traverse is allowed to gohigher on the bobbin. The builder is wound back with a key, thesame as the warp builder. The filling cam, 0\ is made with three lobes, so each revolutionof the cam shaft causes the ring rail to make three…
