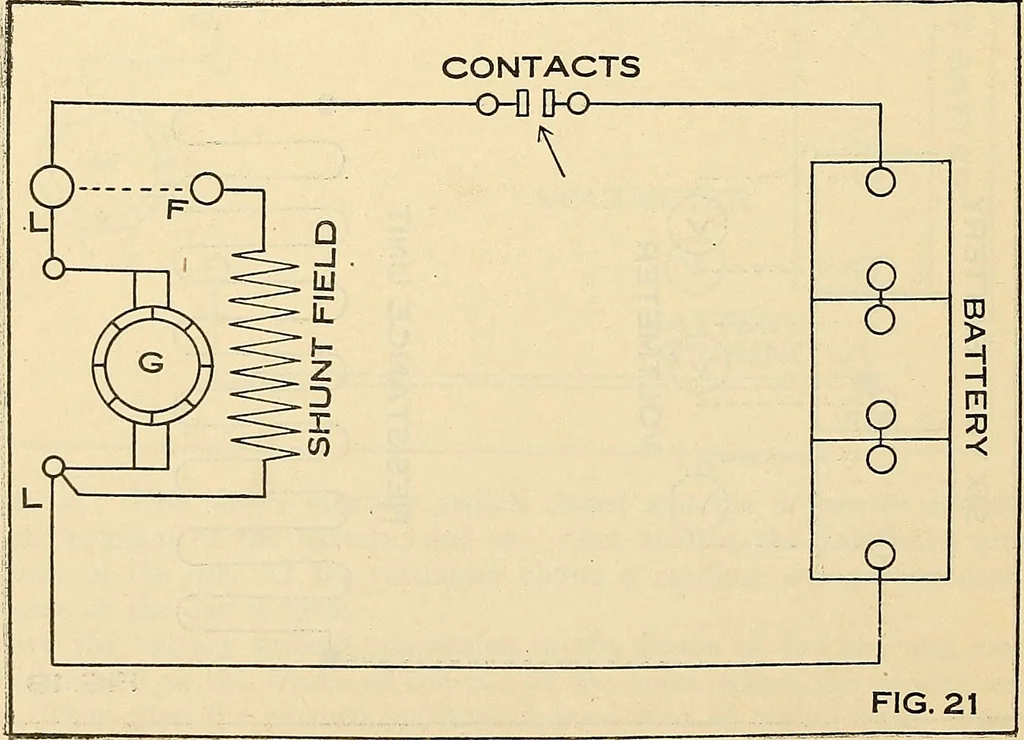

CONTACTS -OODO <*> VOLTMETER o o FIG. 20 Figure 20. This shows a generator wired to a battery with an ammeter con-nected in series with them and a voltmeter connected across the lines between the … ELECTRIC TESTING 281 generator and the battery. The circuit is completed by hand in this case. In manysystems when the ignition switch is turned to the ON position it also causes thesecontacts to close. The voltmeter shows the pressure of the generator and the ammeter indicatesthe output of the…
