Information; elementary electricity, motor car electric systems, the gas engine from an ignition point of view, driving the car (1920)
Phillips, Harvey Elmer, 1874-1948 · Dayton, Ohio, Auto Electric Systems Publishing Company · leaf 288

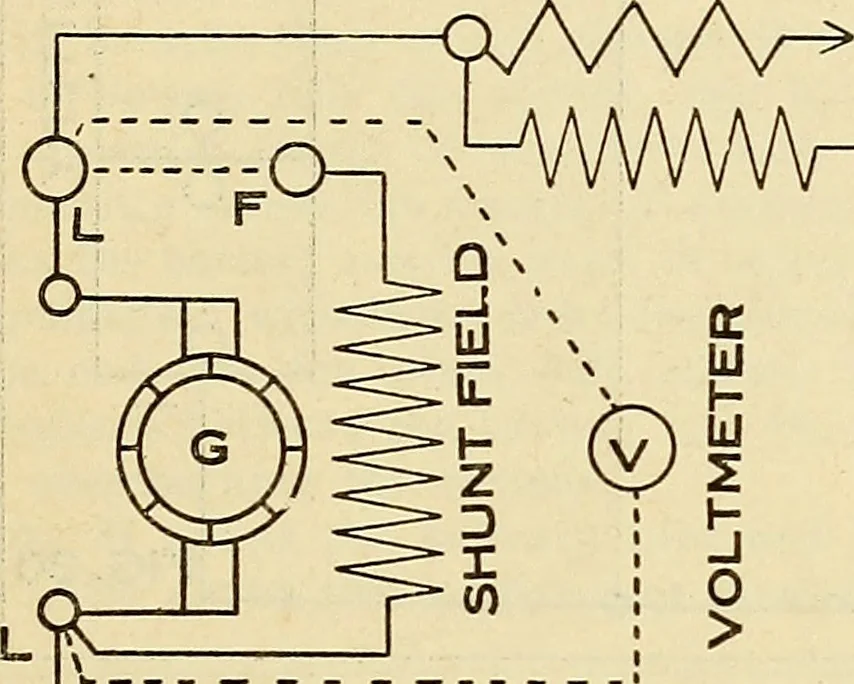

due to short circuits or grounds. • - - ELECTRIC TESTING 285 To make these tests be sure that your lights are not burning, and if ignition istaken from the generator system an allowance must be made for that. Figure 29. To be sure that a cut-out relay is regulated right, connect the volt-meter… … -Q O o FIG. 29 If the two circuits are all right through the relay, then note the tension ofthe tension spring. If the relay closes too soon, stiffen the tension spring; if itdoes not close soon enough, weaken the tension spring. Do not change the tensionof the spring very much at a time. While…
